Introduction to the Cache Library

Mirabilis Design provides Cache block as a standard library in VisualSim Architect modeling environment. Using this environment, systems engineers and product architects can evaluate the impact of design decisions on the performance of their system.


VisualSim Cache modeling environment supports the requirement of the Semiconductor market.  Combined with the industry hardware, software and system library provided in VisualSim Architect, designers assemble an end-to-end system and evaluate the throughput, latency and other performance attributes.  The proposed system can tested for various fault and error condition to evaluate the susceptibility of the system for real-world conditions.

VisualSim Cache block can be used to design a complete architecture for Processor designs and IO device integation to the architecture.

Objective

• Build a model using Cache block
• Analyse the Latency, throughput, power and behavior flow of the block
• Analyse the overal behavior flow of the model


Tutorial System

A demonstration system is provided with explanation on the use of this library. The block diagram is provided below:

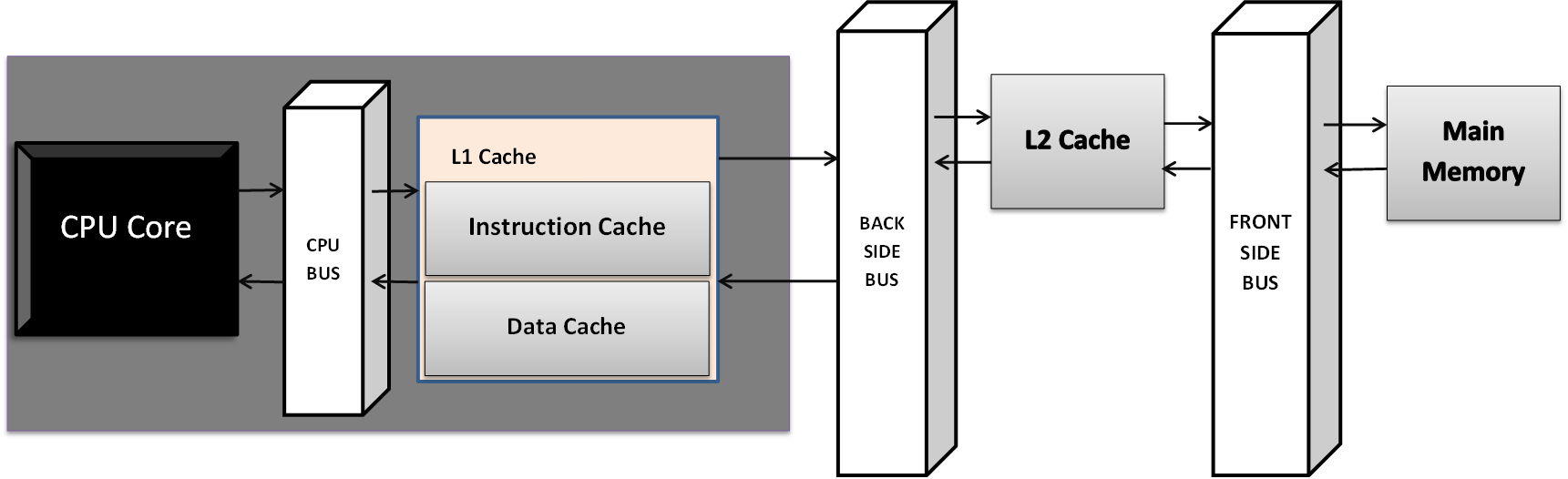

Figure 2: Block diagram of Cache System

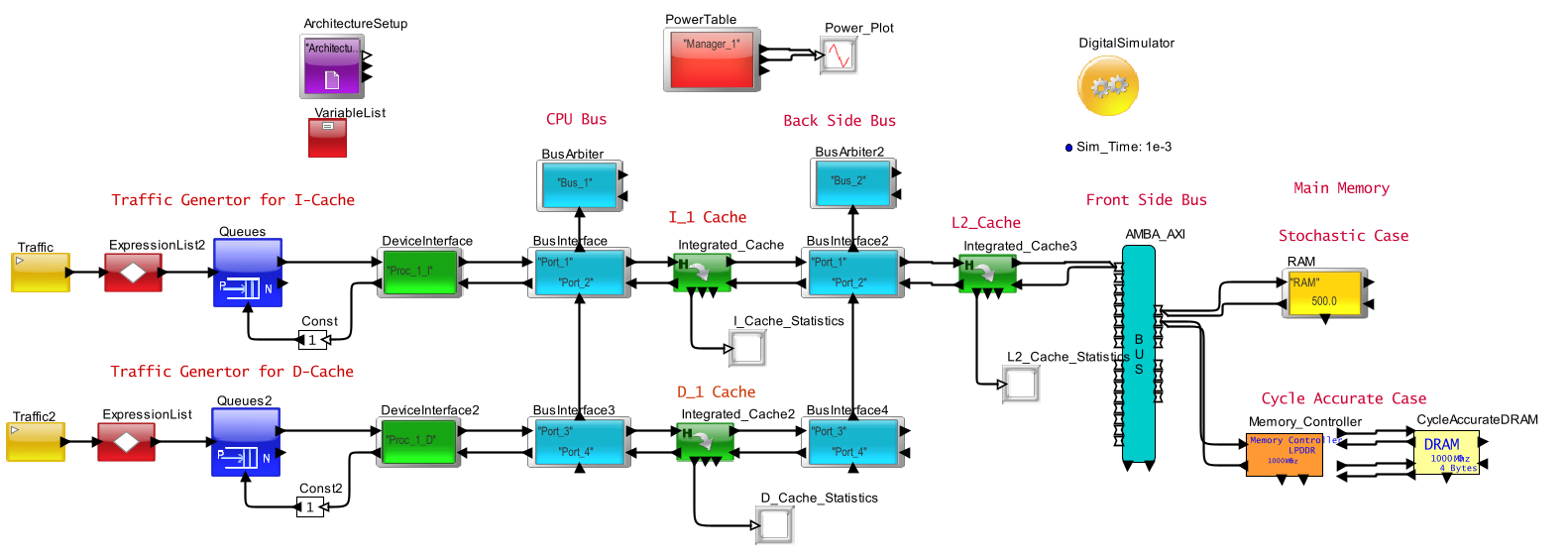

Figure 3: Cache Example system in VisualSim

The Above block diagram shows the internal architecture of CPU, cache and memory.

Traffic generators for I and D cache emulates Processor traffic with required fields in the data structure. The requests generated by the traffic will be passed through the bus to designated cache block. The L2 cache is shared for I and D, it will use main memory in the case of data is unavailable.

The VisualSim model of this design is at- VS_AR/demo/memory/Cache_and_mem.xml

When you run the simulation, there are three text display output showing the statistics for each cache block and one plotter for power consumption. The statistics are generated twice during the simulation.

Model Description

The design consists of three major hardware modeling components and buses for interconnection. The major hardware modeling Components are:

• Processor Traffic
• Traffic, ExpressionList, Queue and Device Interface combines the operation of cache request in the Processor.
• L1 and L2 Cache
• Instruction and Data Cache are implemented separately  as a combination of L1 cache
• Main Memory
• RAM block is used as a stochastic model for main memory. In the case of Cycle accurate model combination of Memory Controller and Cycle Accurate DRAM can be used.


The processor traffic for I and D generates data structure with required fields and send one packet at a time in the model. The blocks in the left hand side of CPU bus is responsible for generating data request for thee cache.
The back side bus interconnects L1 cache and L2 cache. The front side bus interconnects L2 cache and main memory

Blocks Required

1. Model_Setup -> DigitalSimulator
2. Model_Setup -> Parameter

3. Hardware_Setup -> ArchitechtureSetup
4. Traffic -> Traffic
5. Model_Setup ->VariableList

6. Behavior -> ExpressionList
7. Resources -> Queues

8. HardwareSetup -> DeviceInterface
9. Full Library -> Math Operations -> Math and Trig -> Const

10. HardwareDevices -> BusArbiter
11. HardwareDevices -> BusInterface
12. Interfaces_and_Buses -> AMBA -> AMBA_AXI
13. Memory ->  RAM
14. Power -> PowerTable
15. Memory -> Integrated_Cache

Construction Steps

Step 1:

1. Drag DigitalSimulator from model_Setup.
2. Drag Parameter form model_Setup, set name as "Sim_Time" (right click on parameter -> Customize_Name - > "Sim_Time").
3. Configure DigitalSimulator
1. stopTime -> Sim_Time
2. writeStatsToFile -> true

4. Drag ArchitectureSetup from HardwareSetup.

Step 2:

To Emulate Processor traffic:

• Drag Trafffic block from Traffic, cofigure as follows:

• Data_Structure_Name -> "Hardware_DS"
• Value_1 -> 1.0e-6

• Time_Dlistribution -> Fixed(Value_1)

• Drag ExpressionList from  Behavior , modify the flow as follows


          input.A_Source          = "Proc_1_I"
            input.A_Destination     = "I_1"
            input.A_Command       = "Read_Instr"
            input.A_Bytes                 = 32
            input.A_Task_Flag        = true
            input.A_D_Addr             = 0
           input.A_I_Addr                = (TNow>0.0)?(last+8):input.A_Address
           last                                      = input.A_I_Addr

• Drag Queses from Resources, configure as follows:
• Block_Name -> "I_Cache_Queue"
• Drag DeviceInterface from HardwareSetup, configure as follows:
• IO_Name -> "Proc_1_I"
• Drag Const from Full Library -> Math Operations -> Math and Trig
• Repeat the above  step 1 for D -cache processor traffic
• Drag ExpressionList from  Behavior , modify the flow as follows


          input.A_Source          = "Proc_1_D"
            input.A_Destination     = "D_1"
            input.A_Command       = "Read_Req"
            input.A_Bytes                 = 32
            input.A_Task_Flag        = true
            input.A_I_Addr             = 0
           input.A_D_Addr                = (TNow>0.0)?(last+8):input.A_Address
           last                                      = input.A_D_Addr

• Drag DeviceInterface from HardwareSetup, configure as follows:
• IO_Name -> "Proc_1_D"
• Drag Queses from Resources, configure as follows:
• Block_Name -> "D_Cache_Queue"
• Drag Const from Full Library -> Math Operations -> Math and Trig
• Drag VaiableList form model_Setup

            Name    Type    Value
            last        local      0    ;

Step 3:

To Configre Bus and Cache:

• Drag BusArbiter from HardwareDevices, Configure as follows:

• Bus_Name -> "Bus_1"
• Bus_Speed_Mhz -> 1000.0
• Burst_Size_Bytes -> 100.0
• Width_Bytes -> 4
• Drag BusInterface from HardwareDevices,Cofigure as follows:
• Bus_Name -> "Bus_1"s
• Port_Name_1 -> "Port_1"
• Port_Name_2 -> "Port_2"
• Drag BusInterface from HardwareDevice, configure as follows:
• Bus_Name -> "Bus_1"
• Port_Name_1 -> "Port_3"
• Port_Name_2 -> "Port_4"
• Drag Integrated_Cache from Memory(I-Cache),Configure as follows:

• Drag Integrated_Cache from Memory(D-Cache),Configure as follows:

• Drag Integrated_Cache from Memory(L2-Cache),Configure as follows:

Step 4:

To Configre AXI and Memory(Stochastic or Cycle Accurate):

• Drag AMBA_AXI from Interfaces_and_Buses -> AMBA, Configure as follows

• Bus_Name -> "AXI"
• AXI_Speed_Mhz -> 1000.0
• Bus_Width -> 4
• Threshold_Trans_T_Bytes_F -> true
• Number_Masters -> 1
• Number_Slaves -> 1
• Memory for Stochastic Model
• Drag RAM from Memory, configure as follows:

• Memory for Address Based model
• set "Stochastic_or_Address_Based" parameter in the cache blocks as "Address_Baseed"
• modify the Miss_Memory_Name as "DRAM" in L2 cache

• Drag Memory Controller form Memory

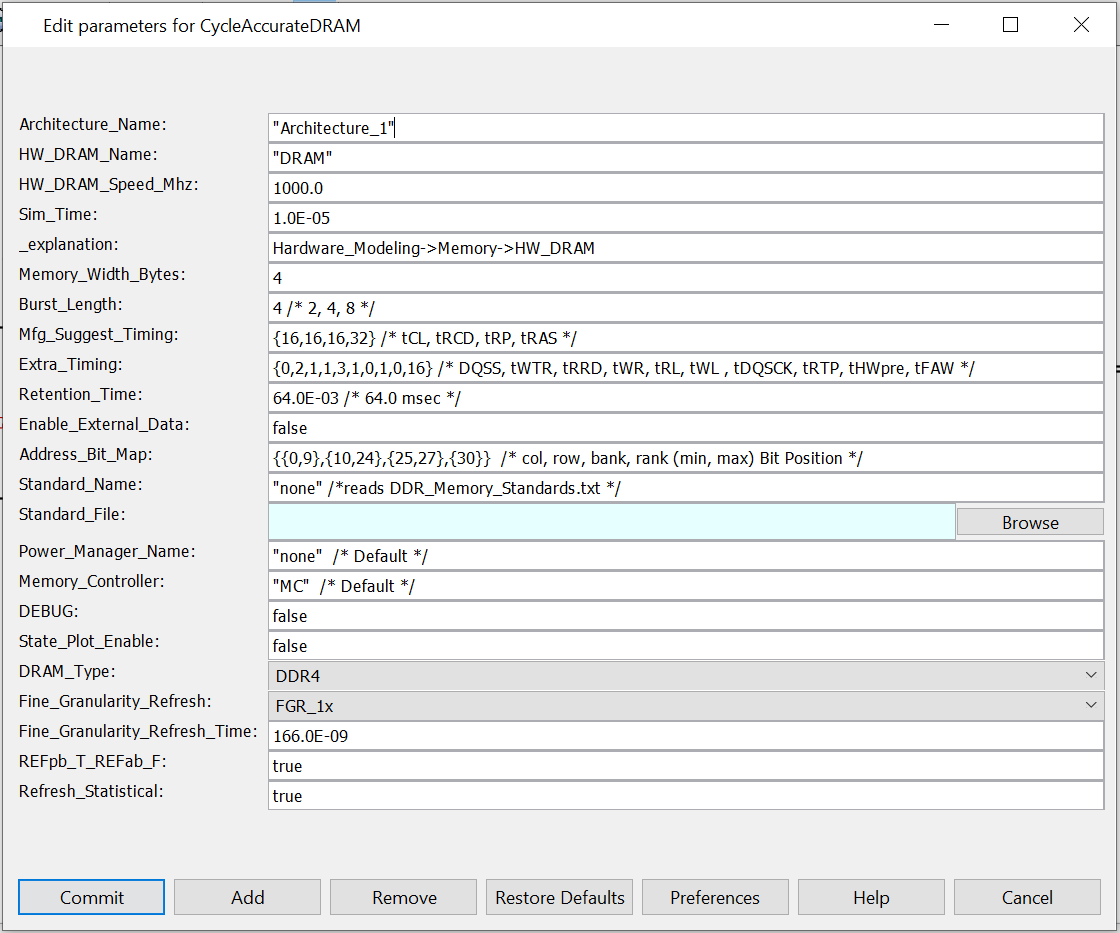

• Draag Cycle Accurate DRAM from Memory
• Configure as follows:

Step 5:

To Configre Power Manager:

• Drag Power Table from Power, configure as follows


Step 6:

    Run the model and observe the statistics for each cache block and the power consumption of the overall model during the simulation period. The following images shows the statistics and power consumption.
    Statistics of cache blocks shows Throughput, buffer occupancy, utilization ,hit and miss ratio. The power plot shows the Instantaneous power and average power consumed by the hardware blocks during the simulation.
    Latency and Throughput of the cache blocks can be plotted using the ports available at cache block. User can use time data plotters for viewing the latency and throughput.
