Design and Analysis of Memory Subsystem Architecture

VisualSim Tutorials ›› MemoryBandwithModel ››

Learning Objectives

Use the framework available in VisualSim to build a model for the following objectives:

Utilize different levels of modelling abstractions based on the available information.
Analyse a memory subsystem to evaluate the response of the memory for:

Different types of requests
Requests from different devices arriving at different rates
Different data size

Introduction

A designer or architect considers the performance of a memory subsystem as one of the crucial factors to achieve real-time application performance. In addition, they must accurately evaluate the tradeoff between performance, power, cost, and reliability of the system. They also need to evaluate properties such as locality, interface technology, arbitration algorithm, and data width while making architecture decisions.

In this tutorial, we explore a memory system architecture with the following levels of abstractions.

Statistical DRAM and Controller with an Abstract Bus Arbiter.
Tutorial Model can be found at $VS\VS_AR\doc\Training_Material\Tutorial\WebHelp\Tutorial\Performance_Modeling\mem_bw_model.xml
Statistical DRAM with a Memory Controller Logic and Single AXI.
Tutorial Model can be found at $VS\VS_AR\doc\Training_Material\Tutorial\WebHelp\Tutorial\Performance_Modeling\mem_bw_model_V3_1.xml
Statistical DRAM with a Memory Controller Logic and Single AXI and Dedicated Local Bus.
Tutorial Model can be found at $VS\VS_AR\doc\Training_Material\Tutorial\WebHelp\Tutorial\Performance_Modeling\mem_bw_model_V3_2.xml
Statistical DRAM with a Memory Controller Logic and Single AXI, Dedicated local Bus and a DMA.
Tutorial Model can be found at $VS\VS_AR\doc\Training_Material\Tutorial\WebHelp\Tutorial\Performance_Modeling\mem_bw_model_V3_5.xml
Cycle Accurate DRAM and Memory Controller.
Tutorial Model can be found at $VS\VS_AR\doc\Training_Material\Tutorial\WebHelp\Tutorial\Performance_Modeling\mem_bw_model_V3_6.xml

Note: Add an offset to every traffic block. In AXI_Bus change the Threshold_Trans_T_Bytes_F value to be true.

Design Methodology

Figure 1 depicts a simple block diagram of a memory system. As the analysis is focussed around memory subsystem, we have abstracted out the processor/external device that performs requests.

In this tutorial, the user analyses the response of the memory to requests from different devices. The user chooses an arbitration to select the highest priority request or the request that arrived first. The request is then put in a Command Queue based on the selected arbitration algorithm. Based on the address of the transactions, a DRAM Requestor decides on the location in the memory to which to send the transactions.

After the completion of the DRAM Read/Write/Erase activity, the response is sent to the Requestor in First Come First Out order.

Figure 1: Block Diagram

Use the above block diagram to create enhanced models with additional blocks. The details are in the subsequent sections.

Block Diagram Usage of VisualSim

In VisualSim, you model the block diagram into five different variations. The details of the five variations are given below:

Variation	Details
Variation 1 (Abstract Arbitration Algorithm and Memory Controller)	Traffic generators Processors to assign values to transactions Arbitration mechanism Command Queues DRAM Requestor DRAM
Variation 2 (Single Bus Interface between devices and Memory)	Traffic generators Processors to assign values to transactions Device Interface BUS Script DRAM
Variation 3 (Local bus and AXI Bus)	Traffic generators Processors to assign values to transactions Device Interface Local Bus Bridge BUS Script DRAM
Variation 4 (Extension to Variation 3 with DMA	Traffic generators Processors to assign values to transactions Device Interface DMA Controller DMA Database BUS Script DRAM
Variation 5 (Extension to Variation 4 and use Cycle Accurate Memory Controller and Memory)	Traffic generators Processors to assign values to transactions Device Interface DMA Controller DMA Database BUS Memory Controller DRAM

Apart from these parts, the following elements are unique to VisualSim:

Parameters are values that are constants for each simulation and can be varied across experiments.
Variables that are registers or single value memory locations that can be used to transfer data between blocks; flags on status and intermediate computing values.
Simulator to define the duration of the simulation.

Variances from the Block Diagram in VisualSim Modeling

Variances

We factor in the following variances when we model the block diagram in VisualSim. These variances are simulation-specific, either for ease of modelling or to capture statistics in the model.

Data Structure fields: Enter the fields for Time Entered, Priority, and Data Size, Channel ID, Command type, Source name, and destination device name.
Traffic: This block simulates the workload or the data packets entering the queues. The block attributed is the data rate. In this case, we have traffic blocks to emulate the requests from processors or peripheral devices.
Attributes of the Memory Request: The typical attributes for the Memory Request are data size in bytes, source, destination, priority, type of request, and time entered.
Differences with hardware: Note that the memory request does not carry the actual data in this tutorial. However, the user can utilize the real data and address information. In this tutorial, the request carries just the size and command type.
Arbitration: Though arbitration is not considered in the first variation of the model, it is incorporated in AHB and AXI buses from Variation 2 onwards. Based on the type of arbitration algorithm selected, bus controller in AMBA AHB and AMBA AXI determine to which master the control must be given.
DeviceInterface: These blocks in VisualSim are not part of the real hardware. They allow to model custom devices and abstract master or slave devices to be part of the system.

Mapping of the block diagram to VisualSim Model

The following table provides a mapping of the block diagram to the VisalSim Model.

Block Diagram	VisualSim Model
Groups 1, 2, and 3	Traffic Processing
Arbitration	Hierarchical
CMD Queue DRAM Requestor	Queue Const
DRAM	RAM
FIFO	TimeDataPlotter Expression_List Queue

Building the VisualSim Model

Use the block information as the base and build a VisualSim model with the Library Blocks listed in the following table (Table 1). Note that some of the steps are applicable only to a particular variation. Such information is given in the “Applicable for Variation” column.

Initial Setup

S.No.	Process	Library Block	Applicable for Variation
1.	Create a Digital Simulator. Use the “Parameter=” block to define a parameter (TStop) and value (for example 10.0) for the Digital parameter “stopTime”.	Digital	Variation 1, 2, 3, 4, 5
2.	Implement an Architecture setup	Architecture_Setup	Variation 1, 2, 3, 4, 5

Create Traffic Generators

S.No.	Process	Library Block	Applicable for Variation
1.	Ensure three traffic generators (Group 1, Group 2, Group 3) to send transactions to the memory. Use the “Parameter=” block to define parameters (Mean_Interrarival_Group1, Mean_Interrarival_Group2, Mean_Interrarival_Group3) and a uniform value (for example 0.1) for the parameter “Value_1” of the traffic generators. Specify the value “Fixed (Value_1)” for the parameter “Time_Distribution” of the traffic sources. Note: Create three modules of traffic generators with each module comprising three different traffic controllers for Variations 2, 3, 4, and 5.	Traffic	All the Variations
2.	Build blocks to assign values to the transactions from the traffic sources. Specify the following values for the parameter “Expression_List”. input.A_Bytes = 400 input.A_Bytes_Remaining = 0 input.A_Bytes_Sent = input.A_Bytes input.A_Command = "Write" input.A_Destination = "DRAM" input.A_Hop = "DRAM" input.A_Status = "" input.A_Task_Flag = true input.A_Interrupt = false input.A_Prefetch = false input.A_Priority = 1 input.Time_Generated = TNow	Processing	All the Variations
3.	Add the following additional instance-specific statements in the respective processing block. “Processing1” input.A_Source = "Group1" input.Origin = "Group1" “Processing2” input.A_Source = "Group2" input.Origin = "Group2" “Processing3” input.A_Source = "Group3" input.Origin = "Group3"		All the Variations
4.	Create a block to make the transactions compatible with the proposed architecture.	DeviceInterface	Variations 2, 3, 4, and 5
5.	Implement a block to receive the transactions from the Memory.	OUT	Variations 2, 3, 4, and 5
6.	Create a DMA Controller.	DMA Controller	Variations 4 and 5
7.	Create a DMA Database.	DMA Database	Variations 4 and 5

Note:

Connect the traffic sources to their respective processing blocks. (All Variations)
Connect the Processing blocks to the Device Interfaces. (Variations 2, 3, 4, and 5)
Connect the DeviceInterface to the OUT block. (Variations 2, 3, 4, and 5)
Create back and forth connections between the DMA Controller and Device Interface. (Variations 4 and 5)
Connect the Device Interface to the DMA Database. (Variations 4 and 5)

Prioritize the transactions (Applicable only for Variation 1)

S.No.	Process	Library Block	Applicable for Variation
1.	Create a block titled “Arbitration” to prioritize the transactions.	Hierarchical	Variation 1
2.	Implement a Command_Queue to put the transactions in a queue. Specify “A_Priority” as the value for the parameter “Priority_Field”.	Queue	Variation 1
3.	Create a Const to POP the head of the queue: Right-click on the “Const” block and select menu Appearance->Flip Ports Horizontally.	Const	Variation 1

Note:

Connect the processing blocks to the arbitration block. (Variation 1)
Connect the arbitration block to the Command_Queue. (Variation 1)
Connect the Const. block to the Command_Queue. (Variation 1)

Implement BUS (Not applicable for Variation 1)

S.No.	Process	Library Block	Applicable for Variation
1.	Create BUS to route the transactions.	AMBA_AXI	Variation 2
2.	Implement a local BUS to route the transactions.	AMBA_AHB	Variations 3, 4, and 5
3.	Create a bridge to connect the local bus to BUS.	Bridge	Variations 3, 4, and 5

Note:

Create back and forth connections between the

BUS and the Device Interface. (Variation 2)
local BUS and the DeviceInterface. (Variations 3, 4, and 5)
local BUS and the Bridge. (Variations 3, 4, and 5)
BUS and the bridge. (Variations 3, 4, and 5)

Implement a Memory

S.No.	Analysis	Library Block
1.	Implement a script to either randomly or sequentially write/read the transactions to the memory.	Script
2.	Implement a Cycle Accurate Memory Controller to either randomly or sequentially write/read the transactions to the memory.	Memory Controller
3.	Insert a memory to hold the transactions. Use the “Parameter=” block to define: “Access_Time” parameter with the value "Read 1000.0/Memory_Speed_Mhz, Prefetch 3.0, Write 1000.0/Memory_Speed_Mhz, ReadWrite 3.0, Erase 3.0" “Memory_Speed_Mhz” with a value 256.0. Specify the following values for other parameters: Memory_Name: “DRAM” Memory_Type:DDR Deselect “Enable_Hello_Messages” Add the parameter “Refresh” and specify false as the default value.	RAM

Note:

Connect the “Arbitration” block to the “Command_Queue”. (Variation 1)
Connect the “Command_Queue” to “DRAM”. (Variation 1)
Connect “DRAM” to “Const”. (Variation 1)
Create back and forth connections between the

Script and the BUS. (Variations 2, 3, and 4)
Memory Controller and the BUS. (Variation 5)
DRAM and Script. (Variations 2, 3, and 4)
DRAM and Memory Controller. (Variation 5)

Illustration of the Model

The VisualSim models are given below:

Variation 1

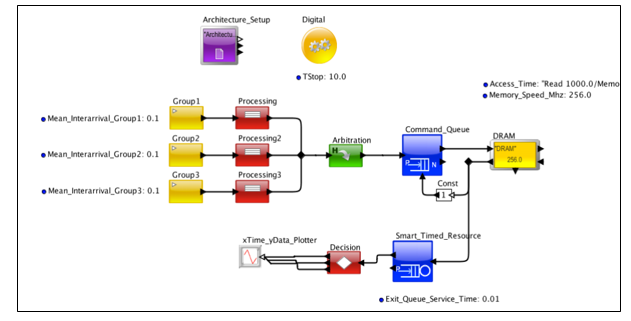

Figure 2: Type 1 VisualSim Model

Variation 2

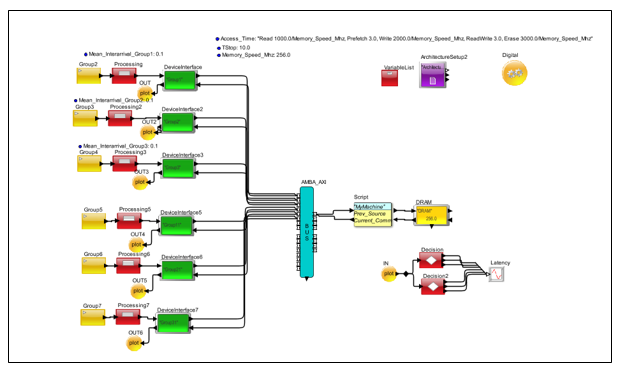

Figure 3: Type 2 VisualSim Model

Variation 3

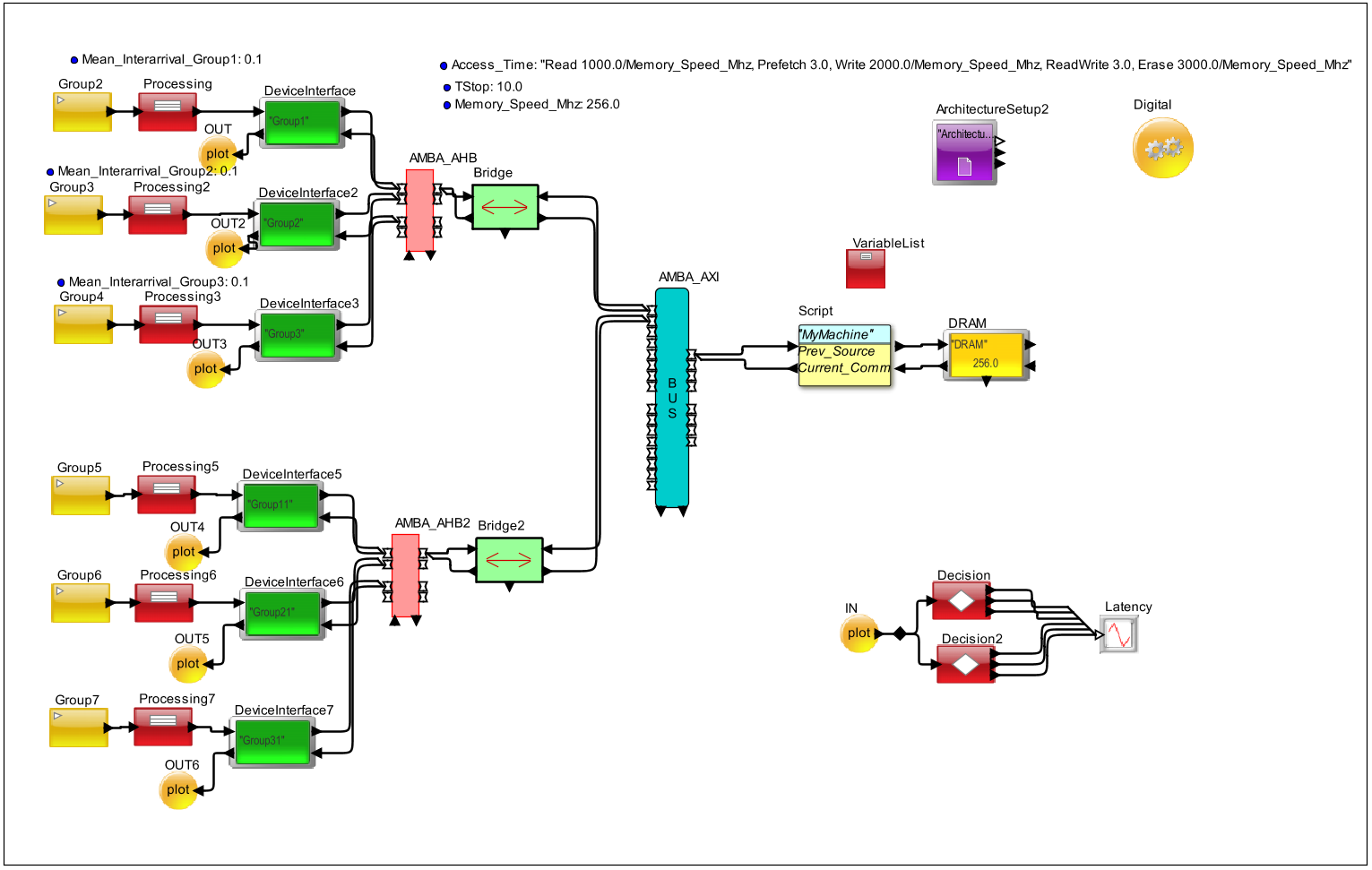

Figure 4: Type 3 VisualSim Model

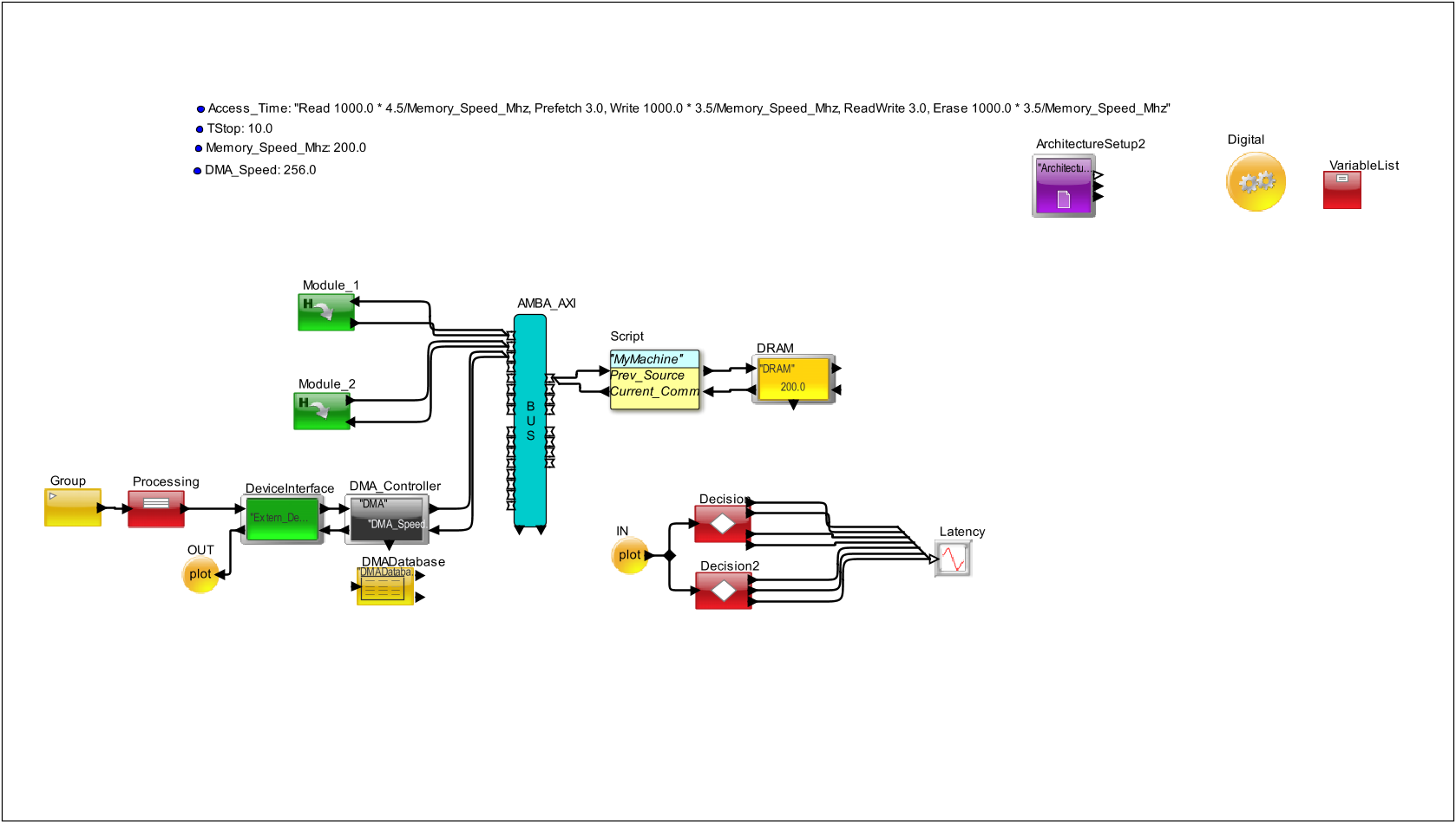

Variation 4

Figure 5: Type 4 VisualSim Model

Variation 5

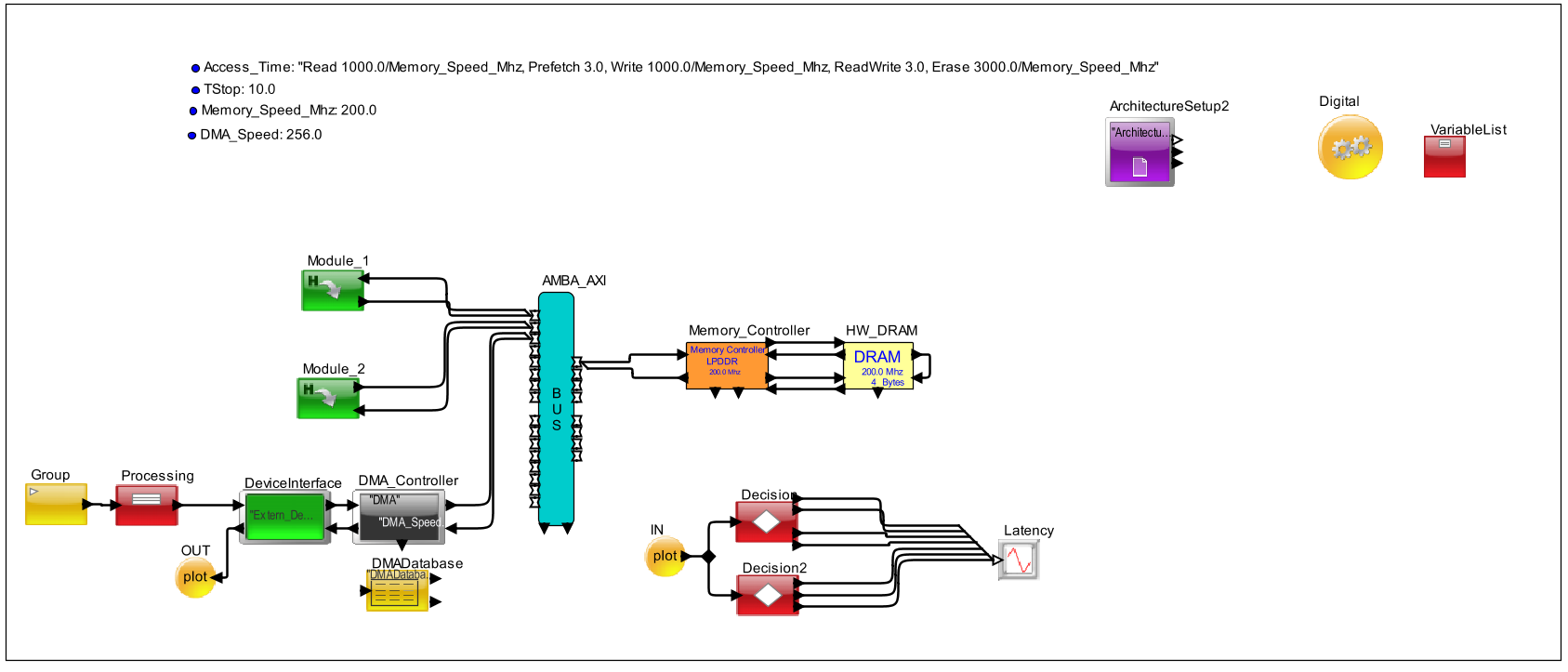

Figure 6: Type 5 VisualSim Model

Gathering Resource Statistics and Reports

Build a Visual model using the Library blocks listed in the table to gather resource statistics and reports.

Variation 1

S.No.	Parameter	Value
1.	Create a block titled “xTime_yData_Plotter”. Right-click on the block and select menu Appearance->Flip Ports Horizontally.	TimeDataPlotter
2.	Build a Decision block. Right-click on the block to select: menu Appearance->Flip Ports Horizontally. menu Customize Ports Add 2 output additional output ports Click the “Add” button and specify “output2”, put a check in the “Output” column, and select double for the “Type” from the pull-down menu. Click the “Add” button and specify “output3”, put a check in the “Output” column, and select double for the “Type” from the pull-down menu.	Expression_List
3.	Implement a queue titled “Smart_Timed_Resource”. Use the “Parameter=” block to define “Exit_Queue_Service_Time” as the value for the parameter “Time_Field”. Right-click on the block to select menu Appearance->Flip Ports Horizontally.	Queue

Note:

Connect the “DRAM” block to the Smart_Timed_Resource” block.
Connect the “Smart_Timed_Resource” block to the “Decision” block.
Connect the “Decision” block to the “xTime_yData_Plotter” block.

Other Variations

S.No.	Parameter	Value
1.	Create a block to send the transaction from the memory for analysis.	IN
2.	Build a Decision block. Right-click on the block to select: menu Appearance->Flip Ports Horizontally. menu Customize Ports Add 2 output additional output ports Click the “Add” button and specify “output2”, put a check in the “Output” column, and select double for the “Type” from the pull-down menu. Click the “Add” button and specify “output3”, put a check in the “Output” column, and select double for the “Type” from the pull-down menu.	Expression_List
3.	Create a block titled “Latency”. Right-click on the block and select menu Appearance->Flip Ports Horizontally.	TimeDataPlotter

Note:

Connect the “IN” block to the “Decision” block.
Connect the “Decision” block to the “Latency” block.

Analysis and Results

Latency graph shows that the end-to-end latency for the complete system. X-axis is the simulation time and Y-axis displays latency in seconds. Latency increases gradually and also shows that the standard deviation between maximum and minimum is huge and may result in unpredictable system behaviour.

Variation 1

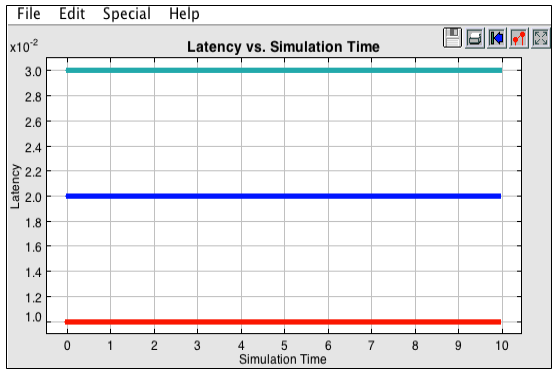

Figure 7: Variation 1 - Latency vs. Simulation Time Plot

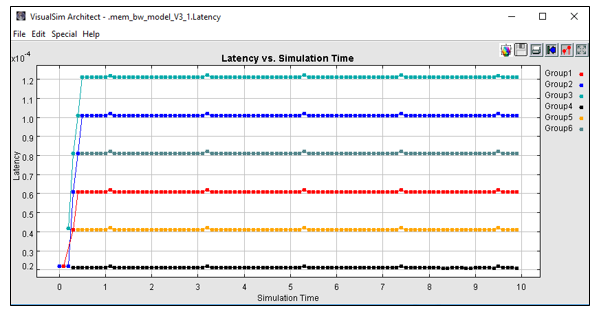

Variation 2

Figure 8: Variation 2 - Latency vs. Simulation Time Plot

Variation 3

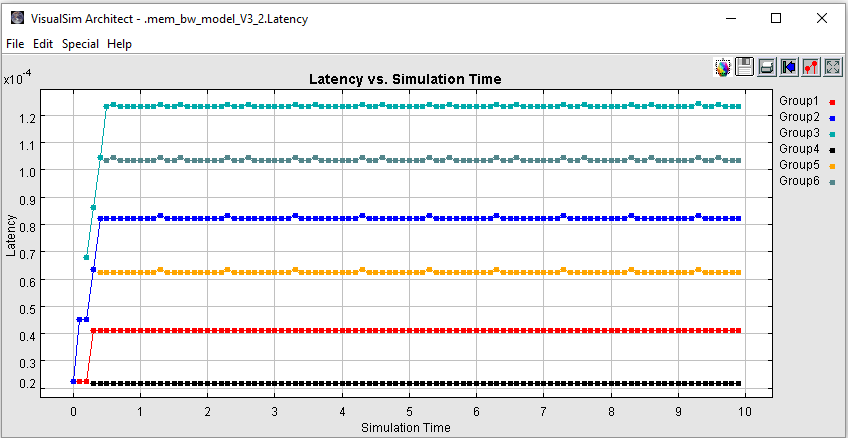

Figure 9: Variation 3 - Latency vs. Simulation Time Plot

Variation 4

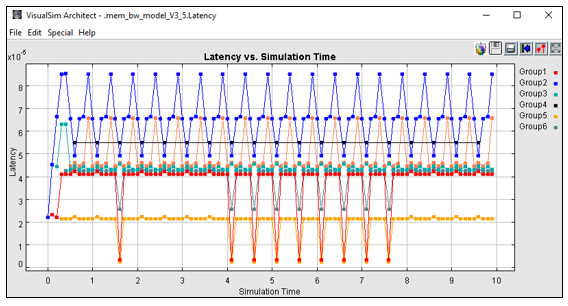

Figure 10: Variation 4 - Latency vs. Simulation Time Plot

Variation 5

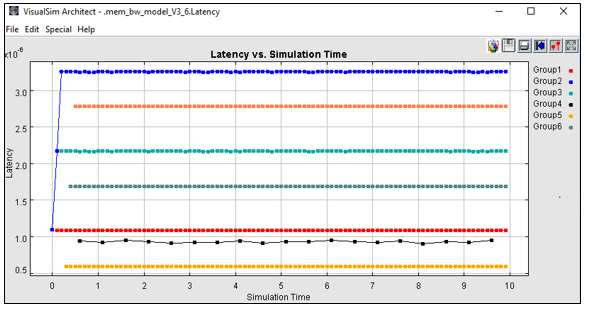

Figure 11: Variation 5 - Latency vs. Simulation Time Plot

Additional Analysis

Build another model for three Traffic Generators with the following blocks:

Traffic (Located in library Traffic->Traffic)
Processing (Located in library Full Library -> Defining_Flow)
VariableList (Located in library ModelSetup->VariableList)
Delay (Located in library Traffic)
Fork (Located in library Behavior)
Text Display (Located in library Results)

Use the following values for the Traffic Generators:

Traffic Generator 1: 1 transaction every 10 ms
Traffic Generator 2: 10 transactions every 10 ms with constant interarrival time (e.g., 1/10 ms)
Traffic Generator 3: 10 transactions every 10 ms with random interarrival times
