Event Based Traffic Generator

The Multi-AXI Bus model can be triggered by event-based traffic generators. The Master events are set to be unique. Events can be scheduled internally. The AXI Bus supports higher data rate transfers to the serial port and the External RAM. The Traffic block sends the data to the serial port through AXI Bus. Similarly the Traffic2 block sends the data to the External RAM through the two AXI Buses. The bridge acts as an interface between both buses as shown in the following image:

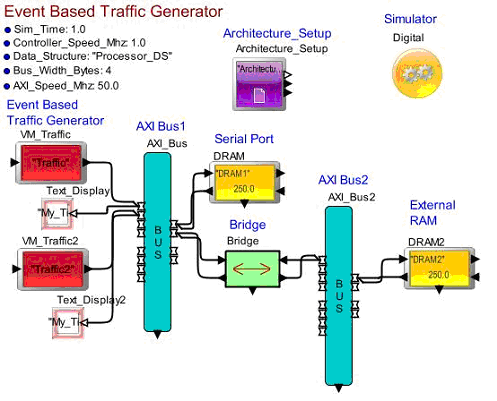

Figure 1.  Event Based Traffic Generator Model
