Network_Failure

Full library / Failure_Analyser / Network_Failure
Block Name: Network_Failure

Code File Location: VisualSim\actor\arch\Failure_AnalyserBlock\Network_Failure

Block Overview

o       Inject Faults.

o       Generate resuts according to the injected faults.

Description

    Network_Failure blocks deals with F.I.R (Failure, Identify and Resolve) series where it  inject the faults in the model as per given conditions from input file and generate the results at every instance of time. The         blocks supports ISO 26262-5 standard, all the failures are taken from the ISO 26262.

  Requirement : Input CSV file


  How block works?

• Drag and drop the Network Failure block.
• Choose any of the failure from the Network_Failure parameter
• Browse the csv file required to perform the failure.
• Run the model

    NOTE: The contents of the CSV file specified is CASE SENSITIVE.

  Supported VisualSim blocks for Network Failure are-

•  Node Block
• Routing Block

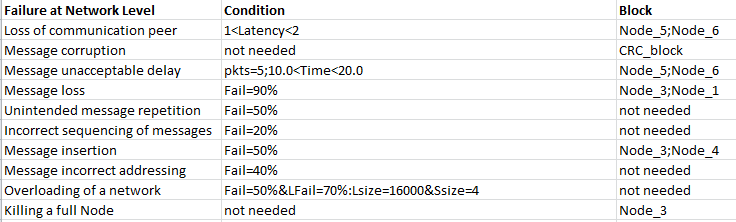

  Input file

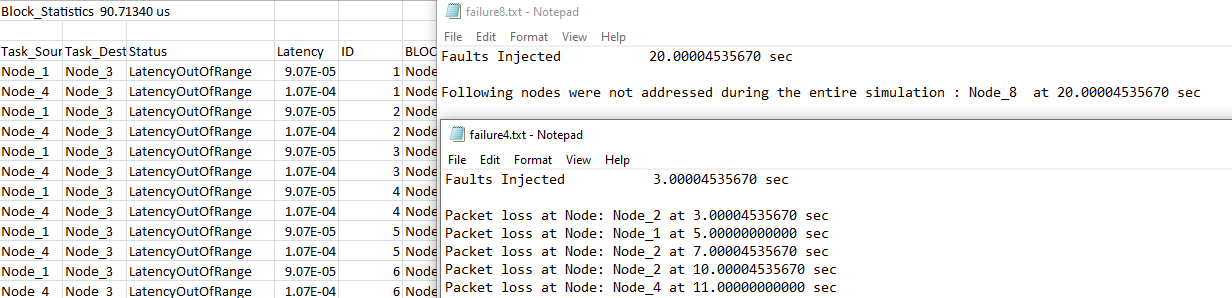

Output file

Refer Network Failure Demo Model.

Parameter	Explanation	Type	Example
Routing_Table_Name	Name of Routing Table	String	“RT”
Input_file	This is the path to the input file.	String	“C:/VisualSim/VS_AR”
writeStatsToFile	"true" to view the generated output on the .txt/.csv file and "false" if no  data required.	Boolean	“True or False
Network_Failure	List of Network failures	pulldown	"Loss of communication peer"



Parameter	Explanation
input	This input port receives a data structure that triggers the block to inject the faults for network failure 10 (Node_Failure).
