RapidIO

High-performance packet-switched, interconnect technology. Supports Chip-Chip, Board-Board (Backplane), Chassis-Chassis integration

Board and System Interfaces

  • PCI And PCIx
    Bus to connect hardware discrete components on a board. Used to evaluate the latency impact
  • Enhanced PCI BAE Systems
  • PCIe
    High speed serial bus for fast access to memory and storage. Also works with NVMe
  • RapidIO
    High-performance packet-switched, interconnect technology. Supports Chip-Chip, Board-Board (Backplane), Chassis-Chassis integration
  • IDT Vendor Product
    IDT implementation for wireless base station infrastructure, high performance computing, data centers, server, video, imaging, military and embedded computing
  • FibreChannel
    High-speed network technology (from 1 to 128 Gbps) providing in-order, lossless delivery of raw block data, from computer data storage to servers
  • NVMe
    Host controller interface to accelerate data transfer between enterprise and solid-state drives across PCIe
  • Firewire
    Serial bus architecture for high-speed data transfer
  • VME
    High speed and high performance bus system with powerful interrupt management and multiprocessor capability
  • VPX
    Switched fabric for cost-effective 10Gb Ethernet and PCI-Express networked systems
  • Spacewire
    SpaceWire utilizes asynchronous communication and allows speeds between 2 Mbit/s and 400 Mbit/s
  • OpenVPX
    OpenVPX replaces VME and VXS standards in defense designs

Quick Explanation

  • Supports logical flow tracing
  • Supports deadline monitoring
  • Supports the use of different scheduling and priority schemes

Protocol

  • RapidIO Specification 4.1: 25 Gbps / lane, 100 Gbps / port, Complete Spec. Stack, 25xN specification
  • RapidIO Specification 4.0: 25 Gbps / lane, 100 Gbps / port, Complete Spec. Stack, 25xN specification
  • RapidIO Specification 3.2: 2.5 Gbps / lane, 50 Gbps / port, Complete Spec. Stack, 10xN specification
  • RapidIO Specification 3.1: NGSIS Extensions, Complete Spec. Stack, 10xN specification
  • RapidIO Specification 3.0: Complete Spec. Stack, 10xN specification
  • RapidIO Specification 2.2: Complete Spec. Stack
  • RapidIO Specification 2.1:
  • RapidIO Specification 2.0: Part 1 to 12, Annex 1 & 2

Model Link

RapidIO

The RapidIO architecture is a high-performance packet interconnect technology whichsupports messaging, read/write and cache coherency semantics.

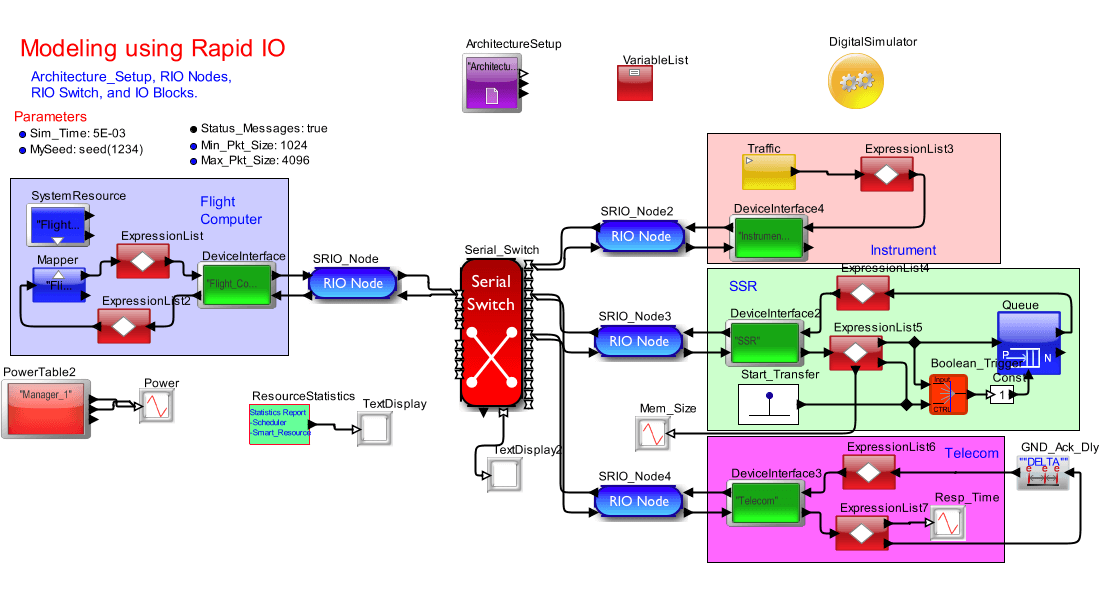

VisualSim RapidIO is a very flexible modeling environment for the optimization of the RIO networks in advance of hardware availability. The tool enables users to gauge power and performance in advance of systems development, and to identify the overall gains of using RapidIO over existing interconnect technologies.

The RIO library blocks are provided as unencrypted, unrestricted access to the source code and can accommodate proprietary changes.

Standards Supported

  • The RapidIO Specification Revision 1.1
  • The RapidIO Specification Revision 1.2
  • The RapidIO Specification Revision 2.0
  • The RapidIO Specification Revision 2.1

Features

  • RapidIO library consists of an end-point and a switch module, the combination of which can be used be used to construct the RIO topology.

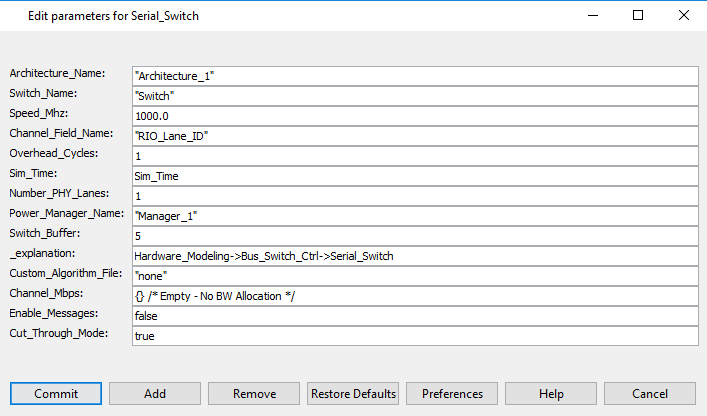

  • Define vendor or custom components by configuring an array of parameters per entity or for the whole system.
  • Create randomized and distributed-based traffic patterns with variable sizes, types, priority and mailbox allocation
  • Device parameters include RIO Speed, Interface speed, Simulation time, Bit Error Rate, Overhead bytes, and Custom Algorithm file.
  • Model internal packet processing with random delays for generation of requests and responses.

Working and Usage

  • Complete systems using RIO network can be constructed with other VisualSim libraries such as processors from TI and Freescale, memories, storage devices, buses such as PCI, PCIe, networking devices such as Ethernet and Fiber Channel, statistical traffic generators and FPGA boards.
  • The unique VisualSim fault generator and the power manager can be incorporated into the RIO model for accurate system operation, logical flow tracing, deadline monitoring and predicting use case effects.
  • A high-performance RIO Node works in conjunction with a Serial Switch to create a RapidIO bus where the node provides the logic for master slave message processing, while the switch provides the channels and timing required by the RapidIO protocol.

Reports and Analysis

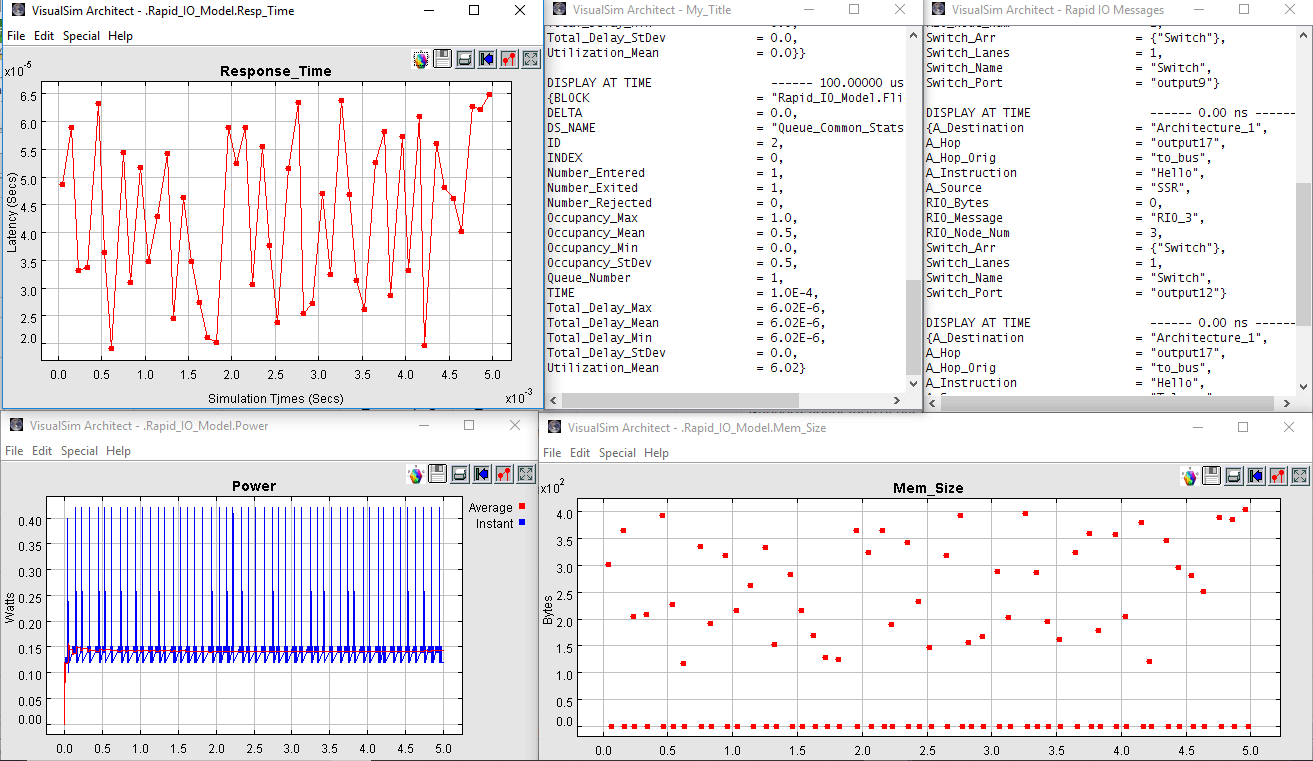

  • Statistics for latency, and mailbox and link throughputs.
  • Buffer usage at end-points
  • Buffer usage at end-points
  • System energy and average power for end-points and links
  • Generate flow trace at packet level and review activities packet-by-packet, flow-by-flow, endpoint-by-endpoint, and link-by-link.

RIO - implements interconnection between flight computer and destination
