  • R4
    Multi-Core 5G baseband SoC processor

Quick Explanation

  • Experiment with the latency and power impacts on safety critical applications
  • Separate I- and D- cache from 4 to 64 KB
  • Eight-stage dual-issue pipeline
  • Instruction pre-fetch, mispredict/flush and selected dual-issue execution
  • Concurrent execution for load-store, MAC, shift-ALU, divide and floating point
  • 64-bit AMBA AXI bus master for Level-2 memory and peripheral access
  • Supports DMA arbitration

Protocol

  • ARM Cortex-R is a f32-bit RISC core, optimized for hard real-time and safety-critical applications. Implements the ARM Real-time (R) profile

Model Link

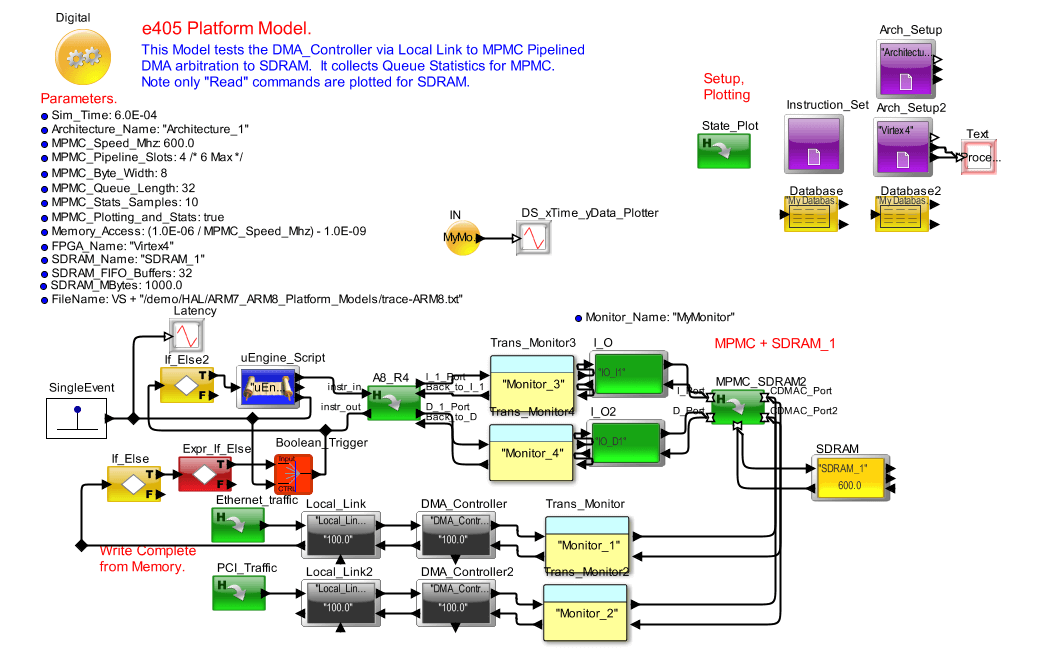

e405 Platform Model using ARM R4
