Using Spreadsheet

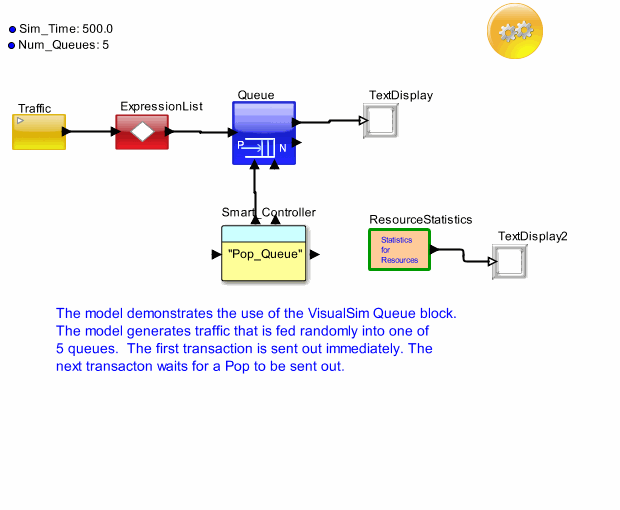

Smart_Resource_model01

Browsable image of the model.

For an executable version,
Mouse over the icons to view parameters. Click on hierarchy and plotters to reveal content (if provided).
To simulate, click on Launch button, open downloaded file and click Run on the Java Security Page.

http://support.microsoft.com/gp/howtoscript

(a) Defines a Queue, buffer or a FIFO. (b) Removes the head transaction when value is received at Pop. (c) Used when the processing delay is not known in advance. Input/Output: (a) Input: Transactions (b) Pop_Input: Integer (Queue Number) or array {Queue, position} (c) Output: Transactions, (d) reject_output: Transactions.
