VLAN

Creating virtual lans across nodes and routers

Networking Basics

  • Introduction
    Demonstrates the Rotuing Table construction and dynamic link analysis
  • Gateway
    Multi-network evaluation
  • Noisy Networks with Retry
    Define retry probability at the L2-4
  • Multicast
    IGMP Protocol on UDP networks
  • Exploring Standard
    Exploring different TCP compression algorithms such as basic, degermark and Jacob in a lossy channel
  • VLAN
    Creating virtual lans across nodes and routers

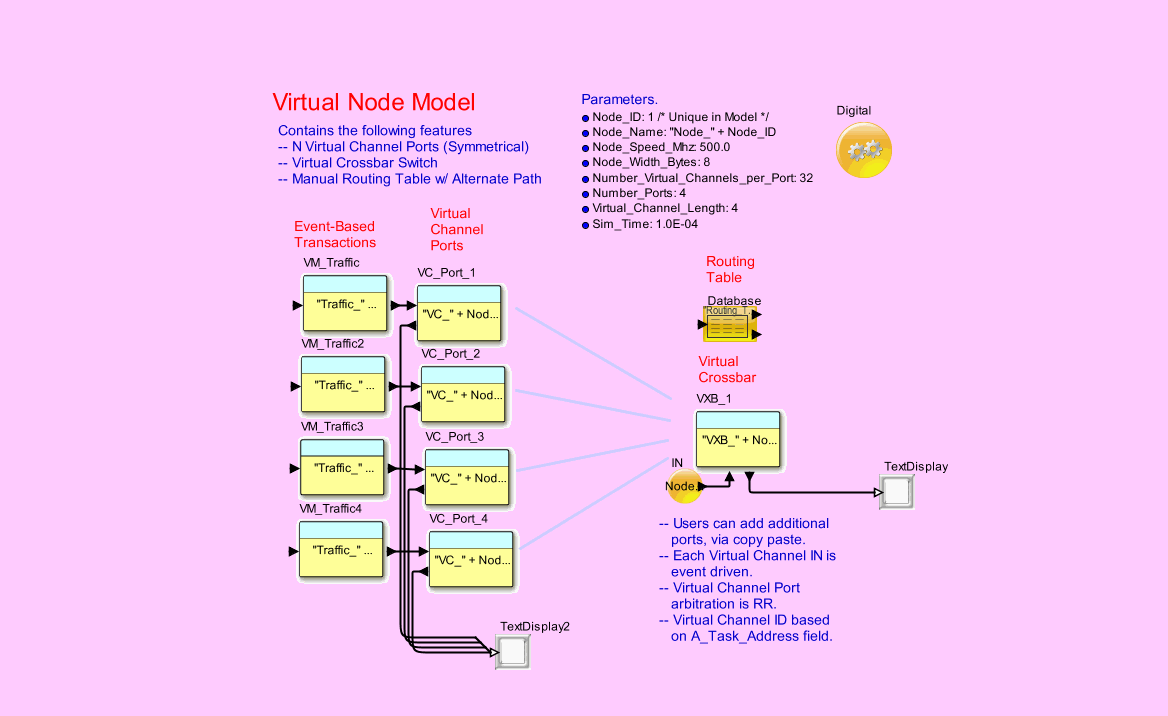

Virtual_Channel_Node

Browsable image of the model.

  • To download OpenWebStart click on the links -
    Windows- Compatibility:Windows 10 or higher (*)
    macOS - Compatibility:macOS 10.15 (Catalina) or higher (*)
    Linux - Compatibility:Ubuntu 18.04 LTS or higher (*)
  • For an executable version,
  • Mouse over the icons to view parameters. Click on hierarchy and plotters to reveal content (if provided).
  • To simulate, click on Launch button, open downloaded file and click Run on the Java Security Page.
Virtual_Channel_Nodemodel <h2>TextDisplay2</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>rowsDisplayed</td><td>10</td><td>10</td></tr><tr><td>columnsDisplayed</td><td>40</td><td>40</td></tr><tr><td>suppressBlankLines</td><td>false</td><td>false</td></tr><tr><td>title</td><td>&quot;VC_n&quot;</td><td>&quot;VC_n&quot;</td></tr><tr><td>ViewText</td><td>true</td><td>true</td></tr><tr><td>saveText</td><td>false</td><td>false</td></tr><tr><td>fileName</td><td>Enter Filename to save text</td><td>&quot;Enter Filename to save text&quot;</td></tr><tr><td>Append_Time</td><td>true</td><td>true</td></tr></table> <h2>TextDisplay</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>rowsDisplayed</td><td>10</td><td>10</td></tr><tr><td>columnsDisplayed</td><td>40</td><td>40</td></tr><tr><td>suppressBlankLines</td><td>false</td><td>false</td></tr><tr><td>title</td><td>&quot;VXB&quot;</td><td>&quot;VXB&quot;</td></tr><tr><td>ViewText</td><td>true</td><td>true</td></tr><tr><td>saveText</td><td>false</td><td>false</td></tr><tr><td>fileName</td><td>Enter Filename to save text</td><td>&quot;Enter Filename to save text&quot;</td></tr><tr><td>Append_Time</td><td>true</td><td>true</td></tr></table> <h2>IN</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>Destination_Name</td><td>Node_Name</td><td>&quot;Node_Name&quot;</td></tr><tr><td>Destination_Type</td><td>Local</td><td>Local</td></tr></table> <h2>VM_Traffic4</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>Block_Name</td><td>&quot;Traffic_&quot; + Traffic_ID</td><td>&quot;Traffic_4&quot;</td></tr><tr><td>Optional_Parameters</td><td>/* First row contains Column Names. */\\nParameter_Name Parameter_Value \\nPath none \\nRead_File none \\nSelf_Start false \\nParam_Script none \\nListen_to_File none \\nDuplicate_Input true \\nProfile 0 \\nProfile_File none \\nMaximum_Loops 1000000 \\nBlock_Reference Block_Name \\nPort_Order_Array {&quot;input&quot;} \\n</td><td>/* First row contains Column Names. */\\nParameter_Name Parameter_Value \\nPath none \\nRead_File none \\nSelf_Start false \\nParam_Script none \\nListen_to_File none \\nDuplicate_Input true \\nProfile 0 \\nProfile_File none \\nMaximum_Loops 1000000 \\nBlock_Reference Block_Name \\nPort_Order_Array {&quot;input&quot;} \\n</td></tr><tr><td>Single_Cycle</td><td>false</td><td>false</td></tr><tr><td>Duplicate_Input</td><td>false</td><td>false</td></tr><tr><td>Start_Time</td><td>0.0</td><td>0.0</td></tr><tr><td>Mean_Time</td><td>1.0E-03 / Node_Speed_Mhz</td><td>2.0E-6</td></tr><tr><td>Data_Structure</td><td>&quot;Processor_DS&quot;</td><td>&quot;Processor_DS&quot;</td></tr><tr><td>Name_of_Event</td><td>&quot;MyEvent_&quot; + Traffic_ID + &quot;_&quot; + Node_ID</td><td>&quot;MyEvent_4_1&quot;</td></tr><tr><td>Traffic_ID</td><td>4</td><td>4</td></tr></table> <h2>VM_Traffic3</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>Block_Name</td><td>&quot;Traffic_&quot; + Traffic_ID</td><td>&quot;Traffic_3&quot;</td></tr><tr><td>Optional_Parameters</td><td>/* First row contains Column Names. */\\nParameter_Name Parameter_Value \\nPath none \\nRead_File none \\nSelf_Start false \\nParam_Script none \\nListen_to_File none \\nDuplicate_Input true \\nProfile 0 \\nProfile_File none \\nMaximum_Loops 1000000 \\nBlock_Reference Block_Name \\nPort_Order_Array {&quot;input&quot;} \\n</td><td>/* First row contains Column Names. */\\nParameter_Name Parameter_Value \\nPath none \\nRead_File none \\nSelf_Start false \\nParam_Script none \\nListen_to_File none \\nDuplicate_Input true \\nProfile 0 \\nProfile_File none \\nMaximum_Loops 1000000 \\nBlock_Reference Block_Name \\nPort_Order_Array {&quot;input&quot;} \\n</td></tr><tr><td>Single_Cycle</td><td>false</td><td>false</td></tr><tr><td>Duplicate_Input</td><td>false</td><td>false</td></tr><tr><td>Start_Time</td><td>0.0</td><td>0.0</td></tr><tr><td>Mean_Time</td><td>1.0E-03 / Node_Speed_Mhz</td><td>2.0E-6</td></tr><tr><td>Data_Structure</td><td>&quot;Processor_DS&quot;</td><td>&quot;Processor_DS&quot;</td></tr><tr><td>Name_of_Event</td><td>&quot;MyEvent_&quot; + Traffic_ID + &quot;_&quot; + Node_ID</td><td>&quot;MyEvent_3_1&quot;</td></tr><tr><td>Traffic_ID</td><td>3</td><td>3</td></tr></table> <h2>VM_Traffic2</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>Block_Name</td><td>&quot;Traffic_&quot; + Traffic_ID</td><td>&quot;Traffic_2&quot;</td></tr><tr><td>Optional_Parameters</td><td>/* First row contains Column Names. */\\nParameter_Name Parameter_Value \\nPath none \\nRead_File none \\nSelf_Start false \\nParam_Script none \\nListen_to_File none \\nDuplicate_Input true \\nProfile 0 \\nProfile_File none \\nMaximum_Loops 1000000 \\nBlock_Reference Block_Name \\nPort_Order_Array {&quot;input&quot;} \\n</td><td>/* First row contains Column Names. */\\nParameter_Name Parameter_Value \\nPath none \\nRead_File none \\nSelf_Start false \\nParam_Script none \\nListen_to_File none \\nDuplicate_Input true \\nProfile 0 \\nProfile_File none \\nMaximum_Loops 1000000 \\nBlock_Reference Block_Name \\nPort_Order_Array {&quot;input&quot;} \\n</td></tr><tr><td>Single_Cycle</td><td>false</td><td>false</td></tr><tr><td>Duplicate_Input</td><td>false</td><td>false</td></tr><tr><td>Start_Time</td><td>0.0</td><td>0.0</td></tr><tr><td>Mean_Time</td><td>1.0E-03 / Node_Speed_Mhz</td><td>2.0E-6</td></tr><tr><td>Data_Structure</td><td>&quot;Processor_DS&quot;</td><td>&quot;Processor_DS&quot;</td></tr><tr><td>Name_of_Event</td><td>&quot;MyEvent_&quot; + Traffic_ID + &quot;_&quot; + Node_ID</td><td>&quot;MyEvent_2_1&quot;</td></tr><tr><td>Traffic_ID</td><td>2</td><td>2</td></tr></table> <h2>VC_Port_4</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>\\n</td><td>\\n</td></tr><tr><td>Block_Name</td><td>&quot;VC_&quot; + Node_ID + &quot;_&quot; + Port_Number</td><td>&quot;VC_1_4&quot;</td></tr><tr><td>Optional_Parameters</td><td>/* First row contains Column Names. */\\nParameter_Name Parameter_Value \\nPath none \\nRead_File none \\nSelf_Start false \\nParam_Script none \\nListen_to_File none \\nDuplicate_Input true \\nProfile 0 \\nProfile_File none \\nMaximum_Loops 1000000 \\nBlock_Reference Block_Name \\nPort_Order_Array {&quot;input&quot;} \\n</td><td>/* First row contains Column Names. */\\nParameter_Name Parameter_Value \\nPath none \\nRead_File none \\nSelf_Start false \\nParam_Script none \\nListen_to_File none \\nDuplicate_Input true \\nProfile 0 \\nProfile_File none \\nMaximum_Loops 1000000 \\nBlock_Reference Block_Name \\nPort_Order_Array {&quot;input&quot;} \\n</td></tr><tr><td>Single_Cycle</td><td>false</td><td>false</td></tr><tr><td>Breakpoint</td><td>&quot;none&quot;</td><td>&quot;none&quot;</td></tr><tr><td>Duplicate_Input</td><td>true</td><td>true</td></tr><tr><td>Port_Number</td><td>4</td><td>4</td></tr><tr><td>DEBUG</td><td>false</td><td>false</td></tr></table> <h2>Database</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Alternate allows for different Source/Destination pairs.\\nLatency not used in this version of the model.</td><td>Alternate allows for different Source/Destination pairs.\\nLatency not used in this version of the model.</td></tr><tr><td>Linking_Name</td><td>&quot;Routing_Table&quot;</td><td>&quot;Routing_Table&quot;</td></tr><tr><td>fileOrURL</td><td>&nbsp;</td><td>&quot;&quot;</td></tr><tr><td>Data_Structure_Text</td><td>/* Manual Routing */\\nSource Destination Hop Alternate Latency \\nVC_1_1 VC_1_4 VC_1_4 1 1.0 /* VC_Port_1 to VC_Port_4 */\\nVC_1_2 VC_1_3 VC_1_3 1 1.0 /* VC_Port_2 to VC_Port_3 */\\nVC_1_3 VC_1_2 VC_1_2 1 1.0 /* VC_Port_3 to VC_Port_2 */\\nVC_1_4 VC_1_1 VC_1_1 1 1.0 /* VC_Port_4 to VC_Port_1 */\\nVC_1_1 VC_1_4 VC_1_3 2 1.0 /* VC_Port_1 to VC_Port_3 */\\nVC_1_2 VC_1_3 VC_1_1 2 1.0 /* VC_Port_2 to VC_Port_1 */\\nVC_1_3 VC_1_2 VC_1_4 2 1.0 /* VC_Port_3 to VC_Port_2 */\\nVC_1_4 VC_1_1 VC_1_2 2 1.0 /* VC_Port_1 to VC_Port_1 */</td><td>/* Manual Routing */\\nSource Destination Hop Alternate Latency \\nVC_1_1 VC_1_4 VC_1_4 1 1.0 /* VC_Port_1 to VC_Port_4 */\\nVC_1_2 VC_1_3 VC_1_3 1 1.0 /* VC_Port_2 to VC_Port_3 */\\nVC_1_3 VC_1_2 VC_1_2 1 1.0 /* VC_Port_3 to VC_Port_2 */\\nVC_1_4 VC_1_1 VC_1_1 1 1.0 /* VC_Port_4 to VC_Port_1 */\\nVC_1_1 VC_1_4 VC_1_3 2 1.0 /* VC_Port_1 to VC_Port_3 */\\nVC_1_2 VC_1_3 VC_1_1 2 1.0 /* VC_Port_2 to VC_Port_1 */\\nVC_1_3 VC_1_2 VC_1_4 2 1.0 /* VC_Port_3 to VC_Port_2 */\\nVC_1_4 VC_1_1 VC_1_2 2 1.0 /* VC_Port_1 to VC_Port_1 */</td></tr><tr><td>Input_Fields</td><td>&quot;A_Source, A_Destination&quot;</td><td>&quot;A_Source, A_Destination&quot;</td></tr><tr><td>Lookup_Fields</td><td>&quot;Source, Destination&quot;</td><td>&quot;Source, Destination&quot;</td></tr><tr><td>Output_Expression</td><td>&quot;output = match&quot; /* FORMAT output = match.fieldb */</td><td>&quot;output = match&quot;</td></tr><tr><td>Mode</td><td>Read</td><td>Read</td></tr></table> <h2>VC_Port_3</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>\\n</td><td>\\n</td></tr><tr><td>Block_Name</td><td>&quot;VC_&quot; + Node_ID + &quot;_&quot; + Port_Number</td><td>&quot;VC_1_3&quot;</td></tr><tr><td>Optional_Parameters</td><td>/* First row contains Column Names. */\\nParameter_Name Parameter_Value \\nPath none \\nRead_File none \\nSelf_Start false \\nParam_Script none \\nListen_to_File none \\nDuplicate_Input true \\nProfile 0 \\nProfile_File none \\nMaximum_Loops 1000000 \\nBlock_Reference Block_Name \\nPort_Order_Array {&quot;input&quot;} \\n</td><td>/* First row contains Column Names. */\\nParameter_Name Parameter_Value \\nPath none \\nRead_File none \\nSelf_Start false \\nParam_Script none \\nListen_to_File none \\nDuplicate_Input true \\nProfile 0 \\nProfile_File none \\nMaximum_Loops 1000000 \\nBlock_Reference Block_Name \\nPort_Order_Array {&quot;input&quot;} \\n</td></tr><tr><td>Single_Cycle</td><td>false</td><td>false</td></tr><tr><td>Breakpoint</td><td>&quot;none&quot;</td><td>&quot;none&quot;</td></tr><tr><td>Duplicate_Input</td><td>false</td><td>false</td></tr><tr><td>Port_Number</td><td>3</td><td>3</td></tr><tr><td>DEBUG</td><td>false</td><td>false</td></tr></table> <h2>VC_Port_2</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>\\n</td><td>\\n</td></tr><tr><td>Block_Name</td><td>&quot;VC_&quot; + Node_ID + &quot;_&quot; + Port_Number</td><td>&quot;VC_1_2&quot;</td></tr><tr><td>Optional_Parameters</td><td>/* First row contains Column Names. */\\nParameter_Name Parameter_Value \\nPath none \\nRead_File none \\nSelf_Start false \\nParam_Script none \\nListen_to_File none \\nDuplicate_Input true \\nProfile 0 \\nProfile_File none \\nMaximum_Loops 1000000 \\nBlock_Reference Block_Name \\nPort_Order_Array {&quot;input&quot;} \\n</td><td>/* First row contains Column Names. */\\nParameter_Name Parameter_Value \\nPath none \\nRead_File none \\nSelf_Start false \\nParam_Script none \\nListen_to_File none \\nDuplicate_Input true \\nProfile 0 \\nProfile_File none \\nMaximum_Loops 1000000 \\nBlock_Reference Block_Name \\nPort_Order_Array {&quot;input&quot;} \\n</td></tr><tr><td>Single_Cycle</td><td>false</td><td>false</td></tr><tr><td>Breakpoint</td><td>&quot;none&quot;</td><td>&quot;none&quot;</td></tr><tr><td>Duplicate_Input</td><td>false</td><td>false</td></tr><tr><td>Port_Number</td><td>2</td><td>2</td></tr><tr><td>DEBUG</td><td>false</td><td>false</td></tr></table> <h2>VM_Traffic</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>Block_Name</td><td>&quot;Traffic_&quot; + Traffic_ID</td><td>&quot;Traffic_1&quot;</td></tr><tr><td>Optional_Parameters</td><td>/* First row contains Column Names. */\\nParameter_Name Parameter_Value \\nPath none \\nRead_File none \\nSelf_Start false \\nParam_Script none \\nListen_to_File none \\nDuplicate_Input true \\nProfile 0 \\nProfile_File none \\nMaximum_Loops 1000000 \\nBlock_Reference Block_Name \\nPort_Order_Array {&quot;input&quot;} \\n</td><td>/* First row contains Column Names. */\\nParameter_Name Parameter_Value \\nPath none \\nRead_File none \\nSelf_Start false \\nParam_Script none \\nListen_to_File none \\nDuplicate_Input true \\nProfile 0 \\nProfile_File none \\nMaximum_Loops 1000000 \\nBlock_Reference Block_Name \\nPort_Order_Array {&quot;input&quot;} \\n</td></tr><tr><td>Single_Cycle</td><td>false</td><td>false</td></tr><tr><td>Duplicate_Input</td><td>false</td><td>false</td></tr><tr><td>Start_Time</td><td>0.0</td><td>0.0</td></tr><tr><td>Mean_Time</td><td>1.0E-04 / Node_Speed_Mhz</td><td>2.0E-7</td></tr><tr><td>Data_Structure</td><td>&quot;Processor_DS&quot;</td><td>&quot;Processor_DS&quot;</td></tr><tr><td>Name_of_Event</td><td>&quot;MyEvent_&quot; + Traffic_ID + &quot;_&quot; + Node_ID</td><td>&quot;MyEvent_1_1&quot;</td></tr><tr><td>Traffic_ID</td><td>1</td><td>1</td></tr></table> <h2>VC_Port_1</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>\\n</td><td>\\n</td></tr><tr><td>Block_Name</td><td>&quot;VC_&quot; + Node_ID + &quot;_&quot; + Port_Number</td><td>&quot;VC_1_1&quot;</td></tr><tr><td>Optional_Parameters</td><td>/* First row contains Column Names. */\\nParameter_Name Parameter_Value \\nPath none \\nRead_File none \\nSelf_Start false \\nParam_Script none \\nListen_to_File none \\nDuplicate_Input true \\nProfile 0 \\nProfile_File none \\nMaximum_Loops 1000000 \\nBlock_Reference Block_Name \\nPort_Order_Array {&quot;input&quot;} \\n</td><td>/* First row contains Column Names. */\\nParameter_Name Parameter_Value \\nPath none \\nRead_File none \\nSelf_Start false \\nParam_Script none \\nListen_to_File none \\nDuplicate_Input true \\nProfile 0 \\nProfile_File none \\nMaximum_Loops 1000000 \\nBlock_Reference Block_Name \\nPort_Order_Array {&quot;input&quot;} \\n</td></tr><tr><td>Single_Cycle</td><td>false</td><td>false</td></tr><tr><td>Breakpoint</td><td>&quot;none&quot;</td><td>&quot;none&quot;</td></tr><tr><td>Duplicate_Input</td><td>true</td><td>true</td></tr><tr><td>Port_Number</td><td>1</td><td>1</td></tr><tr><td>Arbitration_RR_1_Custom_2</td><td>1</td><td>1</td></tr><tr><td>DEBUG</td><td>false</td><td>false</td></tr></table> <h2>VXB_1</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Non-Blocking Switch\\nOne Cycle per transaction sent across switch.</td><td>Non-Blocking Switch\\nOne Cycle per transaction sent across switch.</td></tr><tr><td>Block_Name</td><td>&quot;VXB_&quot; + Node_ID</td><td>&quot;VXB_1&quot;</td></tr><tr><td>Optional_Parameters</td><td>/* First row contains Column Names. */\\nParameter_Name Parameter_Value \\nPath none \\nRead_File none \\nSelf_Start false \\nParam_Script none \\nListen_to_File none \\nDuplicate_Input true \\nProfile 0 \\nProfile_File none \\nMaximum_Loops 1000000 \\nBlock_Reference Block_Name \\nPort_Order_Array {&quot;input&quot;} \\n</td><td>/* First row contains Column Names. */\\nParameter_Name Parameter_Value \\nPath none \\nRead_File none \\nSelf_Start false \\nParam_Script none \\nListen_to_File none \\nDuplicate_Input true \\nProfile 0 \\nProfile_File none \\nMaximum_Loops 1000000 \\nBlock_Reference Block_Name \\nPort_Order_Array {&quot;input&quot;} \\n</td></tr><tr><td>Single_Cycle</td><td>false</td><td>false</td></tr><tr><td>Breakpoint</td><td>&quot;none&quot;</td><td>&quot;none&quot;</td></tr><tr><td>Duplicate_Input</td><td>false</td><td>false</td></tr><tr><td>DEBUG</td><td>true</td><td>true</td></tr><tr><td>Profile_File</td><td>&quot;Profile.txt&quot;</td><td>&quot;Profile.txt&quot;</td></tr></table>
