RTOS Generator

Modeling testbed for a RTOS using a state machine

Software and RTOS

  • Task Generator
    Generates a stream of instructions based on a profile of an application
  • RTOS Generator
    Modeling testbed for a RTOS using a state machine
  • ARINC 653

    Schedule tasks on a Time-Space RTOS
  • Autosar

    Evaluating the performance, exploring new specification and test the diagnostics for complaince with ISO26262

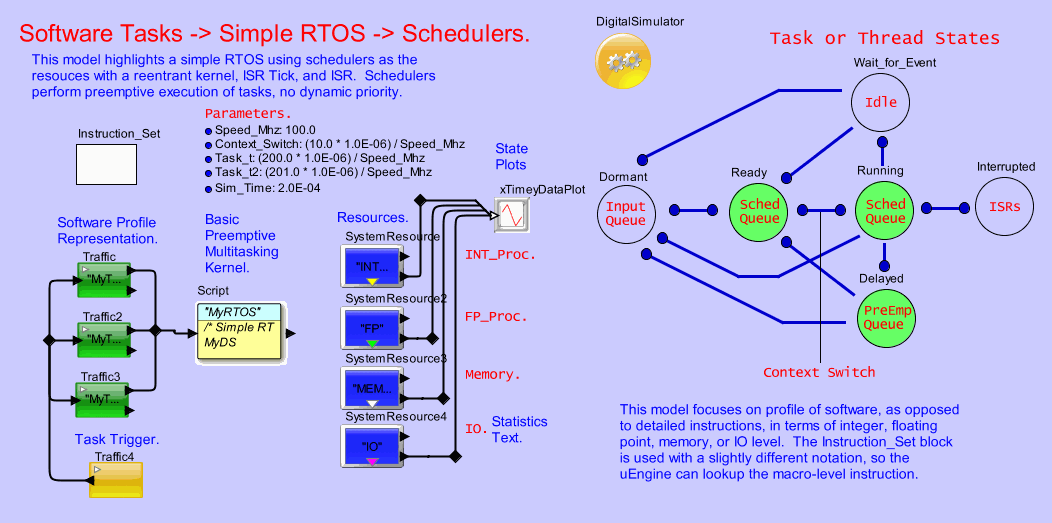

RTOS_base_model

Browsable image of the model.

  • To download OpenWebStart click on the links -
    Windows- Compatibility:Windows 10 or higher (*)
    macOS - Compatibility:macOS 10.15 (Catalina) or higher (*)
    Linux - Compatibility:Ubuntu 18.04 LTS or higher (*)
  • For an executable version,
  • Mouse over the icons to view parameters. Click on hierarchy and plotters to reveal content (if provided).
  • To simulate, click on Launch button, open downloaded file and click Run on the Java Security Page.
RTOS_base_modelmodel <h2>Traffic4</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>Data_Structure_Name</td><td>&quot;Header&quot;</td><td>&quot;Header&quot;</td></tr><tr><td>Start_Time</td><td>Task_t</td><td>2.0E-6</td></tr><tr><td>Value_1</td><td>Task_t * 50.0</td><td>1.0E-4</td></tr><tr><td>Value_2</td><td>2.0</td><td>2.0</td></tr><tr><td>Random_Seed</td><td>123457L</td><td>123457L</td></tr><tr><td>Time_Distribution</td><td>Fixed (Value_1)</td><td>Fixed (Value_1)</td></tr><tr><td>_flipPortsVertical</td><td>true</td><td>true</td></tr><tr><td>_flipPortsHorizontal</td><td>false</td><td>false</td></tr><tr><td>_rotatePorts</td><td>180</td><td>180</td></tr></table> <h2>Instruction_Set</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Define some top level instruction types:\\nInteger (INT), Floating Point (FP) Memory (MEM), or Input/Output (IO)\\nFP and IO references MEM as a secondary action. Integers reflect \\nexpected number of cycles per Task, not instruction.</td><td>Define some top level instruction types:\\nInteger (INT), Floating Point (FP) Memory (MEM), or Input/Output (IO)\\nFP and IO references MEM as a secondary action. Integers reflect \\nexpected number of cycles per Task, not instruction.</td></tr><tr><td>Instruction_Set_Name</td><td>&quot;Processor_Macro_Instr&quot;</td><td>&quot;Processor_Macro_Instr&quot;</td></tr><tr><td>_explanation</td><td>ProcessorGenerator-&gt;Instruction_Set</td><td>ProcessorGenerator-&gt;Instruction_Set</td></tr><tr><td>Instruction_Set_Text</td><td>/* Macro Instruction Set. */\\n Mnew Ww Xx Yy Zz ; /* Label */\\n INT 1 ;\\n FP 2 ;\\n MEM 3 ;\\n IO 4 ;\\n\\n\\n\\n</td><td>/* Macro Instruction Set. */\\n Mnew Ww Xx Yy Zz ; /* Label */\\n INT 1 ;\\n FP 2 ;\\n MEM 3 ;\\n IO 4 ;\\n\\n\\n\\n</td></tr><tr><td>Record_Set_Name</td><td>&quot;Macro_Instr&quot;</td><td>&quot;Macro_Instr&quot;</td></tr></table> <h2>Script</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>Block_Name</td><td>&quot;MyRTOS&quot;</td><td>&quot;MyRTOS&quot;</td></tr><tr><td>Optional_Parameters</td><td>/* First row contains Column Names. */\\nParameter_Name Parameter_Value \\nPath none \\nRead_File none \\nSelf_Start false \\nParam_Script none \\nListen_to_File none \\nDuplicate_Input true \\nProfile 0 \\nProfile_File none \\nMaximum_Loops 1000000 \\nBlock_Reference Block_Name \\nPort_Order_Array {&quot;input&quot;} \\n</td><td>/* First row contains Column Names. */\\nParameter_Name Parameter_Value \\nPath none \\nRead_File none \\nSelf_Start false \\nParam_Script none \\nListen_to_File none \\nDuplicate_Input true \\nProfile 0 \\nProfile_File none \\nMaximum_Loops 1000000 \\nBlock_Reference Block_Name \\nPort_Order_Array {&quot;input&quot;} \\n</td></tr></table> <h2>SystemResource4</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>This_Scheduler_Name</td><td>&quot;IO&quot;</td><td>&quot;IO&quot;</td></tr><tr><td>Parent_Scheduler_Name</td><td>&quot;Fld_Name_or_String_or_None&quot;</td><td>&quot;Fld_Name_or_String_or_None&quot;</td></tr><tr><td>Task_Context_Switch_Time</td><td>Context_Switch</td><td>1.0E-7</td></tr><tr><td>Round_Robin_Time_Slice</td><td>1.0E-3</td><td>1.0E-3</td></tr><tr><td>Clock_Rate_Mhz</td><td>Speed_Mhz</td><td>100.0</td></tr><tr><td>Max_Scheduler_Length</td><td>30</td><td>30</td></tr><tr><td>Time_Type</td><td>Relative Time</td><td>Relative Time</td></tr><tr><td>Scheduler_Type</td><td>FCFS + Preempt</td><td>FCFS + Preempt</td></tr><tr><td>Add_Scheduler_Times_to_DS</td><td>false</td><td>false</td></tr></table> <h2>Traffic3</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>Data_Structure_Text</td><td>/* Text Template or File Path. \\n First row contains Field Names. */\\n MyTime Instruction Priority ; \\n Task_t {&quot;INT.1&quot;,&quot;FP.2&quot;,&quot;MEM.3&quot;,&quot;IO.4&quot;} 2 ; /* DS 1 */\\n Task_t2 {&quot;INT.2&quot;,&quot;FP.1&quot;,&quot;MEM.3&quot;,&quot;IO.4&quot;} 2 ; /* DS 2 */\\n Task_t {&quot;INT.3&quot;,&quot;FP.2&quot;,&quot;MEM.2&quot;,&quot;IO.3&quot;} 2 ; /* DS 3 */\\n Task_t {&quot;INT.4&quot;,&quot;FP.2&quot;,&quot;MEM.3&quot;,&quot;IO.1&quot;} 2 ; /* DS 4 */\\n Task_t {&quot;INT.5&quot;,&quot;FP.0&quot;,&quot;MEM.5&quot;,&quot;IO.0&quot;} 2 ; /* DS 5 */\\n</td><td>/* Text Template or File Path. \\n First row contains Field Names. */\\n MyTime Instruction Priority ; \\n Task_t {&quot;INT.1&quot;,&quot;FP.2&quot;,&quot;MEM.3&quot;,&quot;IO.4&quot;} 2 ; /* DS 1 */\\n Task_t2 {&quot;INT.2&quot;,&quot;FP.1&quot;,&quot;MEM.3&quot;,&quot;IO.4&quot;} 2 ; /* DS 2 */\\n Task_t {&quot;INT.3&quot;,&quot;FP.2&quot;,&quot;MEM.2&quot;,&quot;IO.3&quot;} 2 ; /* DS 3 */\\n Task_t {&quot;INT.4&quot;,&quot;FP.2&quot;,&quot;MEM.3&quot;,&quot;IO.1&quot;} 2 ; /* DS 4 */\\n Task_t {&quot;INT.5&quot;,&quot;FP.0&quot;,&quot;MEM.5&quot;,&quot;IO.0&quot;} 2 ; /* DS 5 */\\n</td></tr><tr><td>Time_Field</td><td>&quot;MyTime&quot;</td><td>&quot;MyTime&quot;</td></tr><tr><td>Probability_Field</td><td>&quot;Field_Name_or_None&quot;</td><td>&quot;Field_Name_or_None&quot;</td></tr><tr><td>Output_Expression</td><td>&quot;trigger = traffic&quot;</td><td>&quot;trigger = traffic&quot;</td></tr></table> <h2>Traffic2</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>Data_Structure_Text</td><td>/* Text Template or File Path. \\n First row contains Field Names. */\\n MyTime Instruction Priority ; \\n Task_t {&quot;INT.1&quot;,&quot;FP.2&quot;,&quot;MEM.3&quot;,&quot;IO.4&quot;} 1 ; /* DS 1 */\\n Task_t {&quot;INT.2&quot;,&quot;FP.1&quot;,&quot;MEM.3&quot;,&quot;IO.4&quot;} 1 ; /* DS 2 */\\n Task_t {&quot;INT.3&quot;,&quot;FP.2&quot;,&quot;MEM.2&quot;,&quot;IO.3&quot;} 1 ; /* DS 3 */\\n Task_t {&quot;INT.4&quot;,&quot;FP.2&quot;,&quot;MEM.3&quot;,&quot;IO.1&quot;} 1 ; /* DS 4 */\\n Task_t {&quot;INT.5&quot;,&quot;FP.0&quot;,&quot;MEM.5&quot;,&quot;IO.0&quot;} 1 ; /* DS 5 */\\n</td><td>/* Text Template or File Path. \\n First row contains Field Names. */\\n MyTime Instruction Priority ; \\n Task_t {&quot;INT.1&quot;,&quot;FP.2&quot;,&quot;MEM.3&quot;,&quot;IO.4&quot;} 1 ; /* DS 1 */\\n Task_t {&quot;INT.2&quot;,&quot;FP.1&quot;,&quot;MEM.3&quot;,&quot;IO.4&quot;} 1 ; /* DS 2 */\\n Task_t {&quot;INT.3&quot;,&quot;FP.2&quot;,&quot;MEM.2&quot;,&quot;IO.3&quot;} 1 ; /* DS 3 */\\n Task_t {&quot;INT.4&quot;,&quot;FP.2&quot;,&quot;MEM.3&quot;,&quot;IO.1&quot;} 1 ; /* DS 4 */\\n Task_t {&quot;INT.5&quot;,&quot;FP.0&quot;,&quot;MEM.5&quot;,&quot;IO.0&quot;} 1 ; /* DS 5 */\\n</td></tr><tr><td>Time_Field</td><td>&quot;MyTime&quot;</td><td>&quot;MyTime&quot;</td></tr><tr><td>Probability_Field</td><td>&quot;Field_Name_or_None&quot;</td><td>&quot;Field_Name_or_None&quot;</td></tr><tr><td>Output_Expression</td><td>&quot;trigger = traffic&quot;</td><td>&quot;trigger = traffic&quot;</td></tr></table> <h2>Traffic</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>Data_Structure_Text</td><td>/* Text Template or File Path. \\n First row contains Field Names. */\\n MyTime Instruction Priority ; \\n Task_t {&quot;INT.2&quot;,&quot;FP.2&quot;,&quot;MEM.3&quot;,&quot;IO.4&quot;} 0 ; /* DS 1 */\\n Task_t {&quot;INT.2&quot;,&quot;FP.1&quot;,&quot;MEM.3&quot;,&quot;IO.4&quot;} 0 ; /* DS 2 */\\n Task_t {&quot;INT.3&quot;,&quot;FP.2&quot;,&quot;MEM.2&quot;,&quot;IO.3&quot;} 0 ; /* DS 3 */\\n Task_t {&quot;INT.4&quot;,&quot;FP.2&quot;,&quot;MEM.3&quot;,&quot;IO.1&quot;} 0 ; /* DS 4 */\\n Task_t {&quot;INT.5&quot;,&quot;FP.0&quot;,&quot;MEM.5&quot;,&quot;IO.0&quot;} 0 ; /* DS 5 */\\n</td><td>/* Text Template or File Path. \\n First row contains Field Names. */\\n MyTime Instruction Priority ; \\n Task_t {&quot;INT.2&quot;,&quot;FP.2&quot;,&quot;MEM.3&quot;,&quot;IO.4&quot;} 0 ; /* DS 1 */\\n Task_t {&quot;INT.2&quot;,&quot;FP.1&quot;,&quot;MEM.3&quot;,&quot;IO.4&quot;} 0 ; /* DS 2 */\\n Task_t {&quot;INT.3&quot;,&quot;FP.2&quot;,&quot;MEM.2&quot;,&quot;IO.3&quot;} 0 ; /* DS 3 */\\n Task_t {&quot;INT.4&quot;,&quot;FP.2&quot;,&quot;MEM.3&quot;,&quot;IO.1&quot;} 0 ; /* DS 4 */\\n Task_t {&quot;INT.5&quot;,&quot;FP.0&quot;,&quot;MEM.5&quot;,&quot;IO.0&quot;} 0 ; /* DS 5 */\\n</td></tr><tr><td>Time_Field</td><td>&quot;MyTime&quot;</td><td>&quot;MyTime&quot;</td></tr><tr><td>Probability_Field</td><td>&quot;Field_Name_or_None&quot;</td><td>&quot;Field_Name_or_None&quot;</td></tr><tr><td>Output_Expression</td><td>&quot;trigger = traffic&quot;</td><td>&quot;trigger = traffic&quot;</td></tr></table> <h2>xTimeyDataPlot</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>fillOnWrapup</td><td>true</td><td>true</td></tr><tr><td>legend</td><td>&nbsp;</td><td>&nbsp;</td></tr><tr><td>startingDataset</td><td>0</td><td>0</td></tr><tr><td>fileName</td><td>Enter Filename to save plot</td><td>&quot;Enter Filename to save plot&quot;</td></tr><tr><td>viewPlot</td><td>true</td><td>true</td></tr><tr><td>savePlot</td><td>false</td><td>false</td></tr></table> <h2>SystemResource2</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>This_Scheduler_Name</td><td>&quot;FP&quot;</td><td>&quot;FP&quot;</td></tr><tr><td>Parent_Scheduler_Name</td><td>&quot;Fld_Name_or_String_or_None&quot;</td><td>&quot;Fld_Name_or_String_or_None&quot;</td></tr><tr><td>Task_Context_Switch_Time</td><td>Context_Switch</td><td>1.0E-7</td></tr><tr><td>Round_Robin_Time_Slice</td><td>1.0E-3</td><td>1.0E-3</td></tr><tr><td>Clock_Rate_Mhz</td><td>Speed_Mhz</td><td>100.0</td></tr><tr><td>Max_Scheduler_Length</td><td>30</td><td>30</td></tr><tr><td>Time_Type</td><td>Relative Time</td><td>Relative Time</td></tr><tr><td>Scheduler_Type</td><td>FCFS + Preempt</td><td>FCFS + Preempt</td></tr><tr><td>Add_Scheduler_Times_to_DS</td><td>false</td><td>false</td></tr></table> <h2>SystemResource</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>This_Scheduler_Name</td><td>&quot;INT&quot;</td><td>&quot;INT&quot;</td></tr><tr><td>Parent_Scheduler_Name</td><td>&quot;Fld_Name_or_String_or_None&quot;</td><td>&quot;Fld_Name_or_String_or_None&quot;</td></tr><tr><td>Task_Context_Switch_Time</td><td>Context_Switch</td><td>1.0E-7</td></tr><tr><td>Round_Robin_Time_Slice</td><td>1.0E-3</td><td>1.0E-3</td></tr><tr><td>Clock_Rate_Mhz</td><td>Speed_Mhz</td><td>100.0</td></tr><tr><td>Max_Scheduler_Length</td><td>30</td><td>30</td></tr><tr><td>Time_Type</td><td>Relative Time</td><td>Relative Time</td></tr><tr><td>Scheduler_Type</td><td>FCFS + Preempt</td><td>FCFS + Preempt</td></tr><tr><td>Add_Scheduler_Times_to_DS</td><td>false</td><td>false</td></tr></table> <h2>SystemResource3</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>This_Scheduler_Name</td><td>&quot;MEM&quot;</td><td>&quot;MEM&quot;</td></tr><tr><td>Parent_Scheduler_Name</td><td>&quot;Fld_Name_or_String_or_None&quot;</td><td>&quot;Fld_Name_or_String_or_None&quot;</td></tr><tr><td>Task_Context_Switch_Time</td><td>Context_Switch</td><td>1.0E-7</td></tr><tr><td>Round_Robin_Time_Slice</td><td>1.0E-3</td><td>1.0E-3</td></tr><tr><td>Clock_Rate_Mhz</td><td>Speed_Mhz</td><td>100.0</td></tr><tr><td>Max_Scheduler_Length</td><td>30</td><td>30</td></tr><tr><td>Time_Type</td><td>Relative Time</td><td>Relative Time</td></tr><tr><td>Scheduler_Type</td><td>FCFS + Preempt</td><td>FCFS + Preempt</td></tr><tr><td>Add_Scheduler_Times_to_DS</td><td>false</td><td>false</td></tr></table>

"This model highlights a simple RTOS using schedulers as the resouces with a reentrant kernel, ISR Tick, and ISR. Schedulers perform preemptive execution of tasks, no dynamic priority.

This model focuses on profile of software, as opposed to detailed instructions, in terms of integer, floating point, memory, or IO level. The Instruction_Set block is used with a slightly different notation, so the uEngine can lookup the macro-level instruction."
