ARINC 653

Schedule tasks on a Time-Space RTOS

ARINC653

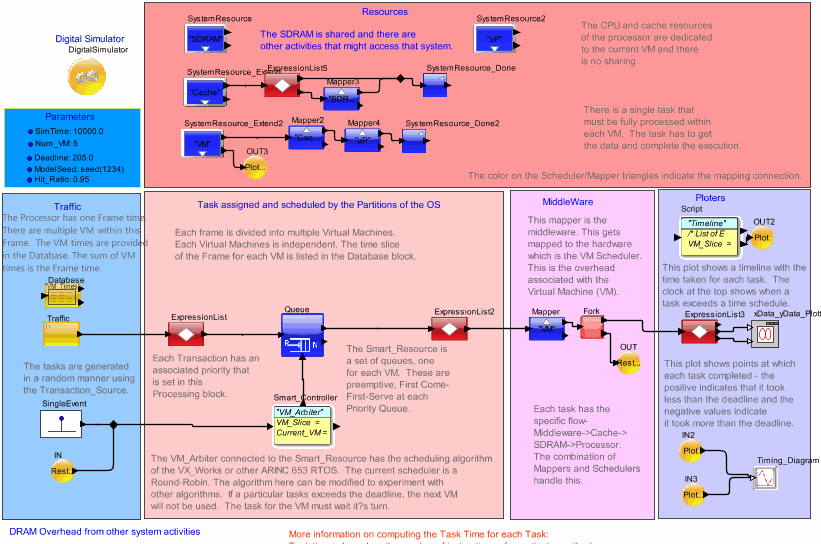

Browsable image of the model.

  • To download OpenWebStart click on the links -
    Windows- Compatibility:Windows 10 or higher (*)
    macOS - Compatibility:macOS 10.15 (Catalina) or higher (*)
    Linux - Compatibility:Ubuntu 18.04 LTS or higher (*)
  • For an executable version,
  • Mouse over the icons to view parameters. Click on hierarchy and plotters to reveal content (if provided).
  • To simulate, click on Launch button, open downloaded file and click Run on the Java Security Page.
ARINC653model <h2>ExpressionList3</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>Expression_List</td><td>/* Template for List of Expressions.    \\n   Result_A = MyRegExpression_A_or_None \\n   Result_B = MyRegExpression_B_or_None \\n   Result_C = MyRegExpression_C_or_None \\n   Result_D = MyRegExpression_D_or_None \\n   End of Expressions                */ \\n</td><td>/* Template for List of Expressions.    \\n   Result_A = MyRegExpression_A_or_None \\n   Result_B = MyRegExpression_B_or_None \\n   Result_C = MyRegExpression_C_or_None \\n   Result_D = MyRegExpression_D_or_None \\n   End of Expressions                */ \\n</td></tr><tr><td>Output_Ports</td><td>output,latency,vm_id</td><td>&quot;output,latency,vm_id&quot;</td></tr><tr><td>Output_Values</td><td>input,(Deadline-(TNow-input.A_Time_Stamp)),input.VM_ID</td><td>&quot;input,(Deadline-(TNow-input.A_Time_Stamp)),input.VM_ID&quot;</td></tr><tr><td>Output_Conditions</td><td>true,true,true</td><td>&quot;true,true,true&quot;</td></tr></table> <h2>ExpressionList2</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>Expression_List</td><td>/* Template to enter multiple RegEx lines*/\\ninput.A_Time_Stamp = TNow</td><td>/* Template to enter multiple RegEx lines*/\\ninput.A_Time_Stamp = TNow</td></tr><tr><td>Output_Ports</td><td>output</td><td>&quot;output&quot;</td></tr><tr><td>Output_Values</td><td>input</td><td>&quot;input&quot;</td></tr><tr><td>Output_Conditions</td><td>true</td><td>&quot;true&quot;</td></tr></table> <h2>ExpressionList</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>Expression_List</td><td>/* Template to enter multiple RegEx lines*/\\ninput.A_Priority = irand (1,4)\\ninput.A_Time     = rand (4.0, 7.0)\\ninput.VM_ID\t = irand (1,Num_VM)\\ninput.A_Source   = 1</td><td>/* Template to enter multiple RegEx lines*/\\ninput.A_Priority = irand (1,4)\\ninput.A_Time     = rand (4.0, 7.0)\\ninput.VM_ID\t = irand (1,Num_VM)\\ninput.A_Source   = 1</td></tr><tr><td>Output_Ports</td><td>output</td><td>&quot;output&quot;</td></tr><tr><td>Output_Values</td><td>input</td><td>&quot;input&quot;</td></tr><tr><td>Output_Conditions</td><td>true</td><td>&quot;true&quot;</td></tr></table> <h2>ExpressionList5</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>Expression_List</td><td>/* Template to enter multiple RegEx lines*/\\nResult_A = (rand(0,1)&lt;=Hit_Ratio)?true:false\\n</td><td>/* Template to enter multiple RegEx lines*/\\nResult_A = (rand(0,1)&lt;=Hit_Ratio)?true:false\\n</td></tr><tr><td>Output_Ports</td><td>output,miss</td><td>&quot;output,miss&quot;</td></tr><tr><td>Output_Values</td><td>input,input</td><td>&quot;input,input&quot;</td></tr><tr><td>Output_Conditions</td><td>Result_A,!Result_A</td><td>&quot;Result_A,!Result_A&quot;</td></tr></table> <h2>IN3</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>Destination_Name</td><td>Plot1</td><td>&quot;Plot1&quot;</td></tr><tr><td>Destination_Type</td><td>Local</td><td>Local</td></tr></table> <h2>OUT3</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>Destination_Name</td><td>Plot1</td><td>&quot;Plot1&quot;</td></tr><tr><td>Destination_Type</td><td>Local</td><td>Local</td></tr></table> <h2>OUT2</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>Destination_Name</td><td>Plot</td><td>&quot;Plot&quot;</td></tr><tr><td>Destination_Type</td><td>Local</td><td>Local</td></tr></table> <h2>IN2</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>Destination_Name</td><td>Plot</td><td>&quot;Plot&quot;</td></tr><tr><td>Destination_Type</td><td>Local</td><td>Local</td></tr></table> <h2>Script</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>Block_Name</td><td>&quot;Timeline&quot;</td><td>&quot;Timeline&quot;</td></tr><tr><td>Optional_Parameters</td><td>/* First row contains Column Names.              */\\nParameter_Name                 Parameter_Value  \\nPath                           none             \\nRead_File                      none             \\nSelf_Start                     false            \\nParam_Script                   none             \\nListen_to_File                 none             \\nDuplicate_Input                true             \\nProfile                        0                \\nProfile_File                   none             \\nMaximum_Loops                  1000000          \\nBlock_Reference                Block_Name       \\nPort_Order_Array               {&quot;input&quot;}      \\n</td><td>/* First row contains Column Names.              */\\nParameter_Name                 Parameter_Value  \\nPath                           none             \\nRead_File                      none             \\nSelf_Start                     false            \\nParam_Script                   none             \\nListen_to_File                 none             \\nDuplicate_Input                true             \\nProfile                        0                \\nProfile_File                   none             \\nMaximum_Loops                  1000000          \\nBlock_Reference                Block_Name       \\nPort_Order_Array               {&quot;input&quot;}      \\n</td></tr><tr><td>Self_Start</td><td>true</td><td>true</td></tr></table> <h2>SingleEvent</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>_explanation</td><td>Source-&gt;Event-&gt;SingleEvent\t</td><td>Source-&gt;Event-&gt;SingleEvent\t</td></tr><tr><td>time</td><td>0.0</td><td>0.0</td></tr><tr><td>value</td><td>true</td><td>true</td></tr></table> <h2>Fork</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr></table> <h2>SystemResource2</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>This_Scheduler_Name</td><td>&quot;uP&quot;</td><td>&quot;uP&quot;</td></tr><tr><td>Parent_Scheduler_Name</td><td>&quot;Fld_Name_or_String_or_None&quot;</td><td>&quot;Fld_Name_or_String_or_None&quot;</td></tr><tr><td>Task_Context_Switch_Time</td><td>0.0</td><td>0.0</td></tr><tr><td>Round_Robin_Time_Slice</td><td>1.0E-3</td><td>1.0E-3</td></tr><tr><td>Clock_Rate_Mhz</td><td>500.0</td><td>500.0</td></tr><tr><td>Max_Scheduler_Length</td><td>30</td><td>30</td></tr><tr><td>Time_Type</td><td>Relative Time</td><td>Relative Time</td></tr><tr><td>Scheduler_Type</td><td>Scheduler_FCFS</td><td>Scheduler_FCFS</td></tr><tr><td>Add_Scheduler_Times_to_DS</td><td>false</td><td>false</td></tr></table> <h2>Mapper4</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>Parent_Scheduler_Name</td><td>&quot;uP&quot;</td><td>&quot;&quot;uP&quot;&quot;</td></tr><tr><td>Task_Number</td><td>1</td><td>&quot;1&quot;</td></tr><tr><td>Task_Priority</td><td>&quot;A_Priority&quot;</td><td>&quot;&quot;A_Priority&quot;&quot;</td></tr><tr><td>Task_Time</td><td>200.0</td><td>&quot;200.0&quot;</td></tr><tr><td>Task_Plot_ID</td><td>1</td><td>1</td></tr></table> <h2>SystemResource_Done2</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr></table> <h2>SystemResource_Done</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr></table> <h2>SystemResource</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>This_Scheduler_Name</td><td>&quot;SDRAM&quot;</td><td>&quot;SDRAM&quot;</td></tr><tr><td>Parent_Scheduler_Name</td><td>&quot;Fld_Name_or_String_or_None&quot;</td><td>&quot;Fld_Name_or_String_or_None&quot;</td></tr><tr><td>Task_Context_Switch_Time</td><td>0.0</td><td>0.0</td></tr><tr><td>Round_Robin_Time_Slice</td><td>1.0E-3</td><td>1.0E-3</td></tr><tr><td>Clock_Rate_Mhz</td><td>500.0</td><td>500.0</td></tr><tr><td>Max_Scheduler_Length</td><td>30</td><td>30</td></tr><tr><td>Time_Type</td><td>Relative Time</td><td>Relative Time</td></tr><tr><td>Scheduler_Type</td><td>Scheduler_FCFS</td><td>Scheduler_FCFS</td></tr><tr><td>Add_Scheduler_Times_to_DS</td><td>false</td><td>false</td></tr></table> <h2>Mapper3</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>Parent_Scheduler_Name</td><td>&quot;SDRAM&quot;</td><td>&quot;&quot;SDRAM&quot;&quot;</td></tr><tr><td>Task_Number</td><td>1</td><td>&quot;1&quot;</td></tr><tr><td>Task_Priority</td><td>&quot;A_Priority&quot;</td><td>&quot;&quot;A_Priority&quot;&quot;</td></tr><tr><td>Task_Time</td><td>6.0</td><td>&quot;6.0&quot;</td></tr><tr><td>Task_Plot_ID</td><td>1</td><td>1</td></tr></table> <h2>SystemResource_Extend</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>This_Scheduler_Name</td><td>&quot;Cache&quot;</td><td>&quot;Cache&quot;</td></tr><tr><td>Task_Context_Switch_Time</td><td>0.0</td><td>0.0</td></tr><tr><td>Round_Robin_Time_Slice</td><td>0.1</td><td>0.1</td></tr><tr><td>Clock_Rate_Mhz</td><td>500.0</td><td>500.0</td></tr><tr><td>Max_Scheduler_Length</td><td>30</td><td>30</td></tr><tr><td>Time_Type</td><td>Relative Time</td><td>Relative Time</td></tr><tr><td>Scheduler_Type</td><td>Scheduler_FCFS</td><td>Scheduler_FCFS</td></tr><tr><td>Add_Scheduler_Times_to_DS</td><td>false</td><td>false</td></tr></table> <h2>Mapper2</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>Parent_Scheduler_Name</td><td>&quot;Cache&quot;</td><td>&quot;&quot;Cache&quot;&quot;</td></tr><tr><td>Task_Number</td><td>1</td><td>&quot;1&quot;</td></tr><tr><td>Task_Priority</td><td>&quot;A_Priority&quot;</td><td>&quot;&quot;A_Priority&quot;&quot;</td></tr><tr><td>Task_Time</td><td>10.0</td><td>&quot;10.0&quot;</td></tr><tr><td>Task_Plot_ID</td><td>1</td><td>1</td></tr></table> <h2>SystemResource_Extend2</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>This_Scheduler_Name</td><td>&quot;VM&quot;</td><td>&quot;VM&quot;</td></tr><tr><td>Task_Context_Switch_Time</td><td>0.0</td><td>0.0</td></tr><tr><td>Round_Robin_Time_Slice</td><td>0.1</td><td>0.1</td></tr><tr><td>Clock_Rate_Mhz</td><td>500.0</td><td>500.0</td></tr><tr><td>Max_Scheduler_Length</td><td>30</td><td>30</td></tr><tr><td>Time_Type</td><td>Relative Time</td><td>Relative Time</td></tr><tr><td>Scheduler_Type</td><td>Scheduler_FCFS</td><td>Scheduler_FCFS</td></tr><tr><td>Add_Scheduler_Times_to_DS</td><td>false</td><td>false</td></tr></table> <h2>xData_yData_Plotter</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>fillOnWrapup</td><td>true</td><td>true</td></tr><tr><td>legend</td><td>&nbsp;</td><td>&nbsp;</td></tr><tr><td>startingDataset</td><td>0</td><td>0</td></tr><tr><td>fileName</td><td>Enter Filename to save plot</td><td>&quot;Enter Filename to save plot&quot;</td></tr><tr><td>viewPlot</td><td>true</td><td>true</td></tr><tr><td>savePlot</td><td>false</td><td>false</td></tr></table> <h2>IN</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>Destination_Name</td><td>Restart</td><td>&quot;Restart&quot;</td></tr><tr><td>Destination_Type</td><td>Local</td><td>Local</td></tr></table> <h2>OUT</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>Destination_Name</td><td>Restart</td><td>&quot;Restart&quot;</td></tr><tr><td>Destination_Type</td><td>Local</td><td>Local</td></tr></table> <h2>Timing_Diagram</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>fillOnWrapup</td><td>true</td><td>true</td></tr><tr><td>legend</td><td>&nbsp;</td><td>&nbsp;</td></tr><tr><td>startingDataset</td><td>0</td><td>0</td></tr><tr><td>fileName</td><td>Enter Filename to save plot</td><td>&quot;Enter Filename to save plot&quot;</td></tr><tr><td>viewPlot</td><td>true</td><td>true</td></tr><tr><td>savePlot</td><td>false</td><td>false</td></tr></table> <h2>Mapper</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>Parent_Scheduler_Name</td><td>&quot;VM&quot;</td><td>&quot;&quot;VM&quot;&quot;</td></tr><tr><td>Task_Number</td><td>&quot;VM_ID&quot;</td><td>&quot;&quot;VM_ID&quot;&quot;</td></tr><tr><td>Task_Priority</td><td>&quot;A_Priority&quot;</td><td>&quot;&quot;A_Priority&quot;&quot;</td></tr><tr><td>Task_Time</td><td>&quot;A_Time&quot;</td><td>&quot;&quot;A_Time&quot;&quot;</td></tr><tr><td>Task_Plot_ID</td><td>1</td><td>1</td></tr></table> <h2>Smart_Controller</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>Block_Name</td><td>&quot;VM_Arbiter&quot;</td><td>&quot;VM_Arbiter&quot;</td></tr><tr><td>Optional_Parameters</td><td>/* First row contains Column Names.              */\\nParameter_Name                 Parameter_Value     \\nPath                           none                \\nRead_File                      none                \\nSave_Files                     false               \\nProfile_File                   none                \\nListen_to_File                 none                \\nDuplicate_Input                true                \\nProfile                        0                   \\nMaximum_Loops                  1000000             \\nBlock_Reference                Block_Name          \\nPort_Order_Array               {&quot;input&quot;}         \\nAdd_Scheduler_Times_to_DS      false               \\n</td><td>/* First row contains Column Names.              */\\nParameter_Name                 Parameter_Value     \\nPath                           none                \\nRead_File                      none                \\nSave_Files                     false               \\nProfile_File                   none                \\nListen_to_File                 none                \\nDuplicate_Input                true                \\nProfile                        0                   \\nMaximum_Loops                  1000000             \\nBlock_Reference                Block_Name          \\nPort_Order_Array               {&quot;input&quot;}         \\nAdd_Scheduler_Times_to_DS      false               \\n</td></tr><tr><td>Single_Cycle</td><td>false</td><td>false</td></tr><tr><td>Breakpoint</td><td>&quot;none&quot;</td><td>&quot;none&quot;</td></tr><tr><td>Self_Start</td><td>true</td><td>true</td></tr><tr><td>Smart_Resource_Name</td><td>&quot;MySmartResource&quot;</td><td>&quot;MySmartResource&quot;</td></tr></table> <h2>Queue</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>Block_Name</td><td>&quot;VM_Queue&quot;</td><td>&quot;VM_Queue&quot;</td></tr><tr><td>Queue_Number_Field</td><td>&quot;VM_ID&quot;</td><td>&quot;VM_ID&quot;</td></tr><tr><td>Priority_Field</td><td>&quot;A_Priority&quot;</td><td>&quot;A_Priority&quot;</td></tr><tr><td>Max_Queue_Length</td><td>30</td><td>30</td></tr><tr><td>Number_of_Queues</td><td>Num_VM</td><td>5</td></tr><tr><td>Initial_Queue_State</td><td>First_Token_Enqueue</td><td>First_Token_Enqueue</td></tr><tr><td>Queue_Reject_Mechanism</td><td>Incoming_Token_Rejected</td><td>Incoming_Token_Rejected</td></tr><tr><td>Queue_Type</td><td>FIFO</td><td>FIFO</td></tr></table> <h2>Database</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>*.xml, *.csv files abs or rel (./) path\\n  -- *.csv real columns set to number\\nInput_Fields == Lookup_Fields (num, type)\\nOutput_Expr: match, match_last, match_all\\n  -- match_all.field not allowed</td><td>*.xml, *.csv files abs or rel (./) path\\n  -- *.csv real columns set to number\\nInput_Fields == Lookup_Fields (num, type)\\nOutput_Expr: match, match_last, match_all\\n  -- match_all.field not allowed</td></tr><tr><td>Linking_Name</td><td>&quot;VM_Times&quot;</td><td>&quot;VM_Times&quot;</td></tr><tr><td>fileOrURL</td><td>&nbsp;</td><td>&quot;&quot;</td></tr><tr><td>Data_Structure_Text</td><td>VM_ID      Time_Slice  ;\\n1\t   250.0         ;\\n2\t   240.0         ;\\n3          200.0         ;\\n4          240.0         ;\\n5          200.5         ;\\n</td><td>VM_ID      Time_Slice  ;\\n1\t   250.0         ;\\n2\t   240.0         ;\\n3          200.0         ;\\n4          240.0         ;\\n5          200.5         ;\\n</td></tr><tr><td>Input_Fields</td><td>&quot;Time_Slice&quot;</td><td>&quot;Time_Slice&quot;</td></tr><tr><td>Lookup_Fields</td><td>&quot;Time_Slice&quot;</td><td>&quot;Time_Slice&quot;</td></tr><tr><td>Output_Expression</td><td>&quot;output = match&quot; /* FORMAT output = match.fieldb */</td><td>&quot;output = match&quot;</td></tr><tr><td>Mode</td><td>Read</td><td>Read</td></tr></table> <h2>Traffic</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>Data_Structure_Name</td><td>&quot;Header&quot;</td><td>&quot;Header&quot;</td></tr><tr><td>Start_Time</td><td>0.0</td><td>0.0</td></tr><tr><td>Value_1</td><td>220.0</td><td>220.0</td></tr><tr><td>Value_2</td><td>300.0</td><td>300.0</td></tr><tr><td>Random_Seed</td><td>123457L</td><td>123457L</td></tr><tr><td>Time_Distribution</td><td>Fixed (Value_1)</td><td>Fixed (Value_1)</td></tr></table>

This is a detailed implementation of the Time-Space parititoning implemented in the ARINC653 protocol. There are parameters in this model to customize for Greenhill and VXWorks implementation. In addition, the model can be customised for sub-set implementation such as just the scheduler. The model has a database that maintains the tasks and the associated mapping to a time slot. The model has a timing deadline assertion to check whether the tasks exceed the slot time.
