Board and System Interfaces

NVMe
Model dual NVMe conencted to PCIe and receiving requests from a Host
FibreChannel
Firewire
A single root node is connected to two branch nodes and each branch node is separated by a fixed length.
PCI/PCIx
Demonstrates the use of PCI to handle the arbitration between multiple requesters and memory
BAE Enhanced PCI Bus
Coming Soon
PCIe
Four Root Complex are connected to multiple DRAM across a PCIe bus
RapidIO
Models a Spacecraft network using a RapidIO backbone
IDT RapidIO Switch
VME
Multiple are connected to a VME bus and configurations such as Width, speed, data rate are varied to achieve maximum burst size and higher throughput
OpenVPX
Creating an OpenVPX backplane for an outer space application

PCIe_AXI_model27

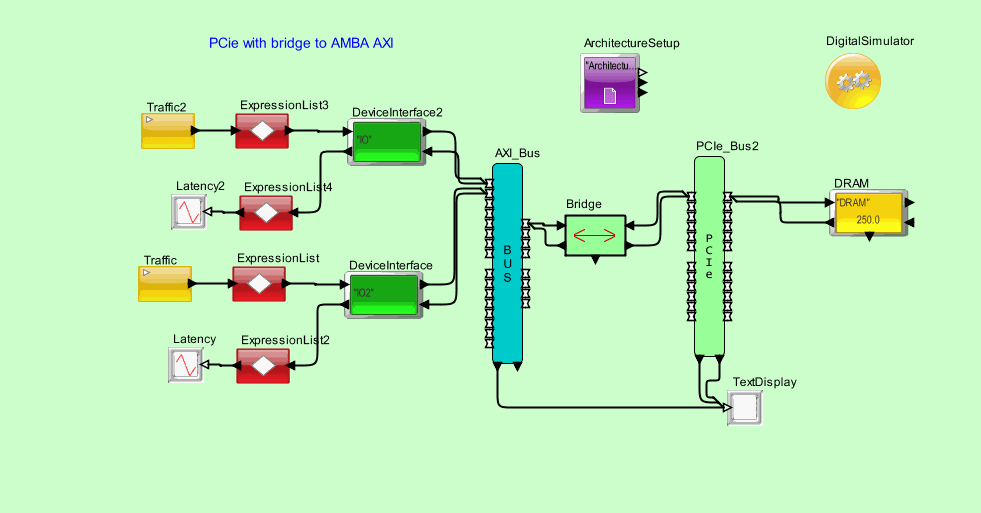

Browsable image of the model.

To download OpenWebStart click on the links -
Windows- Compatibility:Windows 10 or higher (*)
macOS - Compatibility:macOS 10.15 (Catalina) or higher (*)
Linux - Compatibility:Ubuntu 18.04 LTS or higher (*)
For an executable version,
Mouse over the icons to view parameters. Click on hierarchy and plotters to reveal content (if provided).
To simulate, click on Launch button, open downloaded file and click Run on the Java Security Page.
