AXI (Advanced eXtensible Interface) is a bus architecture used for connecting components in system-on-chip (SoC) designs. To measure the AXI bus throughput using VisualSim, you can use the following steps:

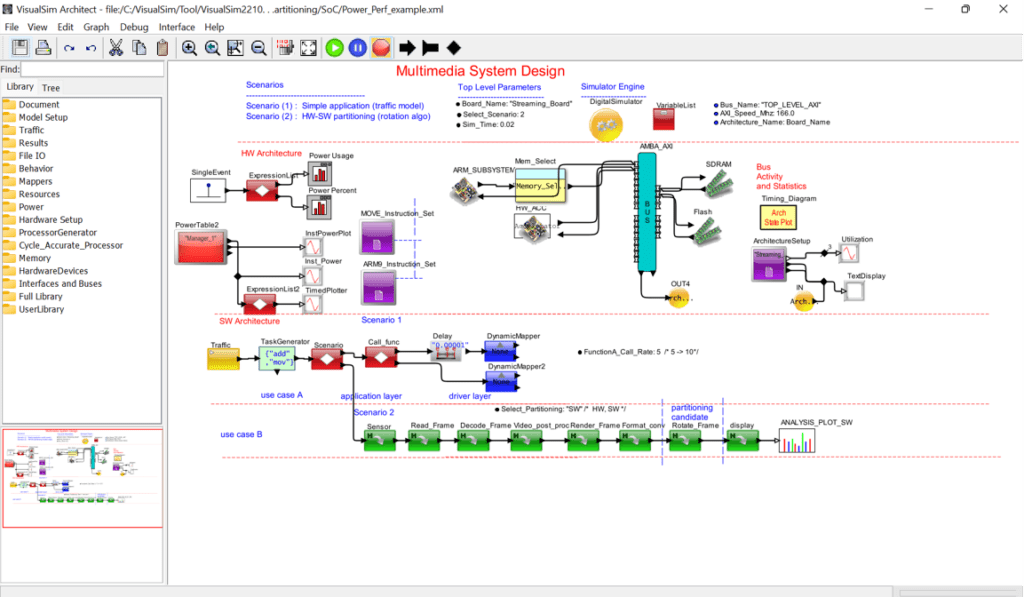

Create a model of the AXI bus and the components that are connected to it using VisualSim.
Specify the behavior of the components and the AXI bus, including the data transfer rates and protocols.
Run a simulation of the system using VisualSim and collect data on the traffic on the AXI bus.
Calculate the throughput of the AXI bus by dividing the total amount of data transferred over the bus by the total time taken to transfer the data.
Keep in mind that the accuracy of the throughput measurement will depend on the fidelity and completeness of the model, as well as the validity of the assumptions and inputs used in the simulation. It is important to carefully validate and verify the accuracy of the simulation model before using it to make decisions or predictions.
