Quick Explanation

• Supports 15-stage pipeline
• Supports floating point instructions
• 4 Execution Units
• 32 registers
• Multiply/Accumulate Unit (MAC), Integer Divide Module (IDM) and Floating Point Unit (FPU)
• DMA

Protocol

• Coldfire V2
• Coldfire V3
• Coldfire V4
• MCF5307BUM
• MCF5475RM Floating Pount Unit

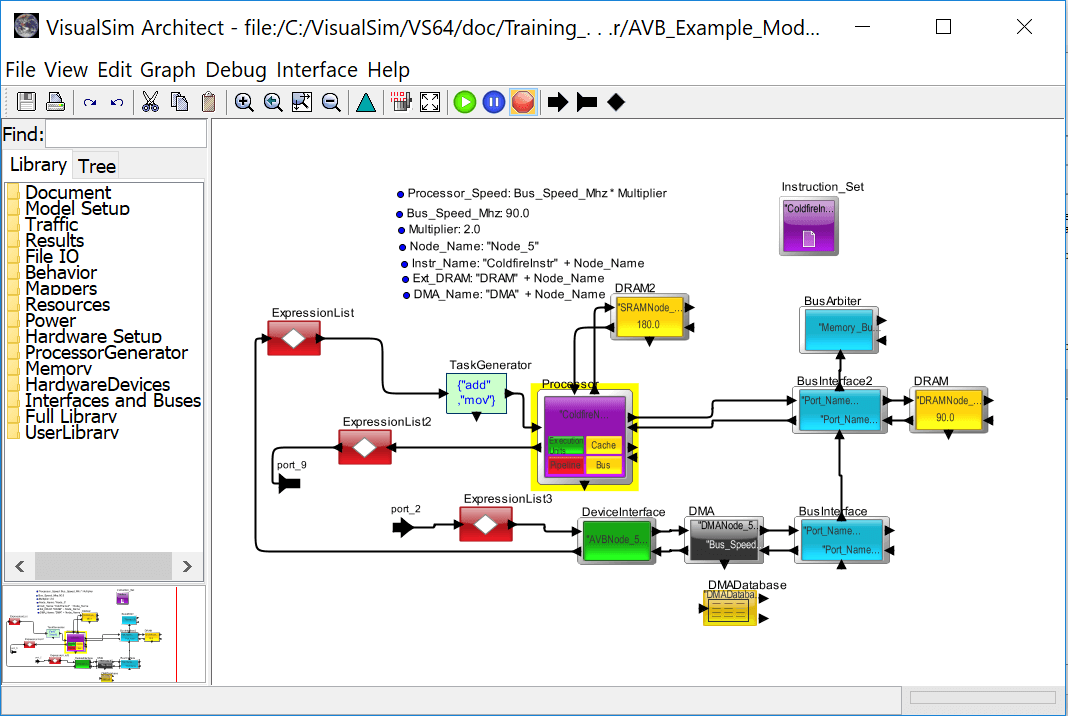

Model Link

• https://www.mirabilisdesign.com/launchdemo/doc/Training_Material/Tutorial/WebHelp/Tutorial/Architecture_Exploration/Custom_Processor/AVB_Example_Model_Coldfire

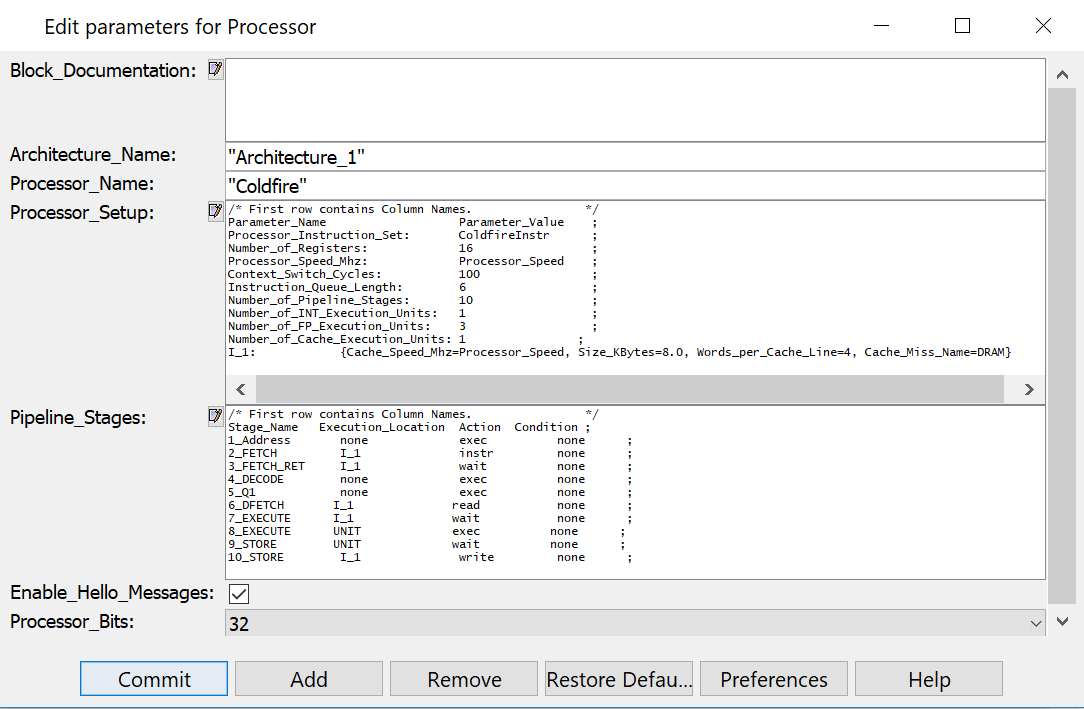

Coldfire – Implements 10-stage Pipelined Processor

10-stage Pipelined Processor by Coldfire

•
•
•
