Parameter-based customized interface for use with 10 different protocols including PCIe and AXI

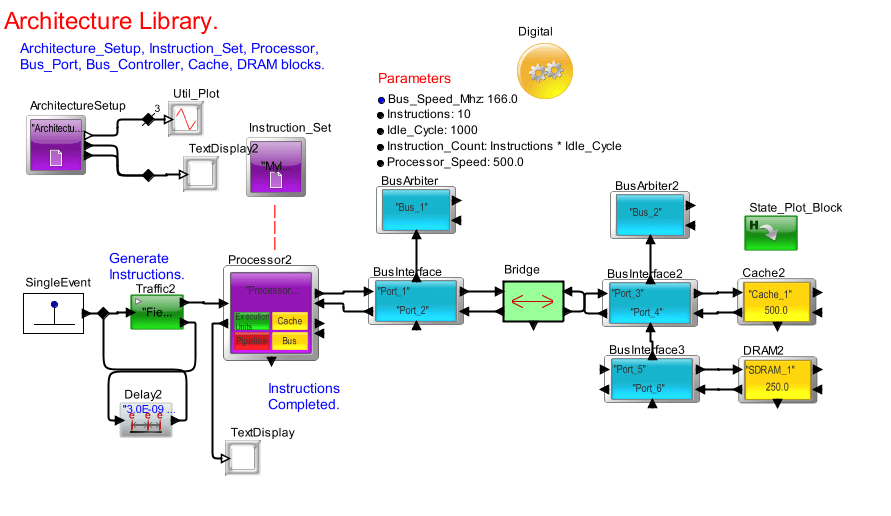

The Bridge block is used to connect two buses together. The VisualSim Bridge module offers the fundamental requirements for making a connection between multiple buses for constructing a comprehensive model. This block is unique and support protocol conversions across both standard-specific and generic buses. These include AXI, CHI, ACE, PCI, AHB, PCIe and Ethernet.

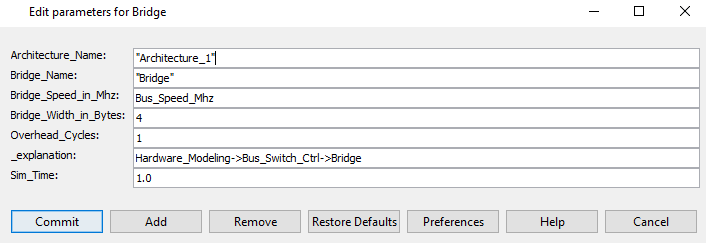

Parameters include Bridge speed, Bridge Width and Overhead Cycles.
