A72

Enables Multi-Core high performance 64-bit ARMv8 processor

ARM Processor

  • Cortex M0 Microcontrollers
    Architecture model of the energy efficient Arm micro-controllers
  • Cortex M03 Microcontrollers
    Architecture model of the energy efficient Arm micro-controllers
  • Cortex M4 Microcontrollers
    Architecture model of the energy efficient Arm micro-controllers
  • A7
    power-performance model
  • A8
    Highly-optimized for performance and power efficiency
  • A9
    32-bit processor core
  • A53
    Enables Multi-Core power efficient ARMv8 processor
  • A72
    Enables Multi-Core high performance 64-bit ARMv8 processor
  • R4
    Multi-Core 5G baseband SoC processor

Quick Explanation

  • Supports ARM V8 ISA
  • Supports out-of-order pipeline
  • Supports 15 stage pipeline
  • Supports NpBench's networking task profile
  • Supports execution of floating point instruction
  • 3-way superscalar execution pipeline
  • DSP and NEON SIMD extensions
  • VFPv4 Floating Point Unit
  • 32 KiB data (2-way set-associative) + 48 KiB instruction (3-way set-associative) L1 cache per core
  • Level-2 (16-way set-associative) cache controller, 512 KB to 4 MB configurable size per cluster
  • 48-entry translation lookaside buffer (TLB) with support for 4 KB, 64 KB, and 1 MB page sizes
  • 32-entry L1 data TLB with native support for 4 KiB, 64 KiB, and 1 MB page sizes
  • 1024-entry L2 TLB per core
  • Ability to generate mispredict and pipeline flush
  • Supports integration with AMBA and standard memory

Protocol

  • ARM Cortex-A72 is a microarchitecture implementing the ARMv8-A 64-bit instruction set

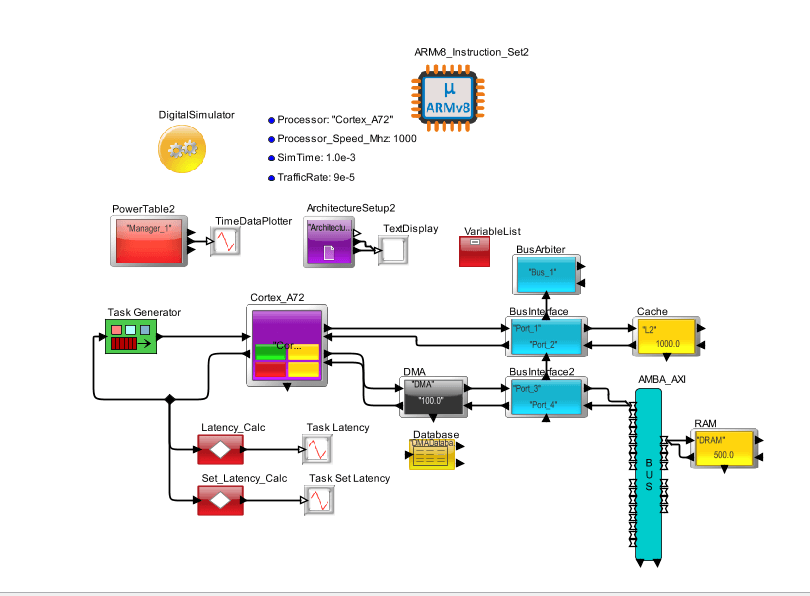

Cortex A72 - out of order, 15-stage pipelined processor
